SKU M Series Microscopes
Price range: $374.00 through $617.00
The M Series has a base designed to provide comfort while viewing, and stability while operating this instrument. A calibrated pointer provides actual measurements and a reversed nosepiece provides more working room on the stage area and facilitates easy slide changes. The built-in Köhler illumination system provides high contrast and evenly distributed light to the sample. A great instrument for industry and lab use. Comes with a 5 year limited warranty, excluding bulbs. CSA approved.
| ITEM NO. | HEAD | OBJECTIVES |
FOCUSING | ILLUMINATION | PRICE |

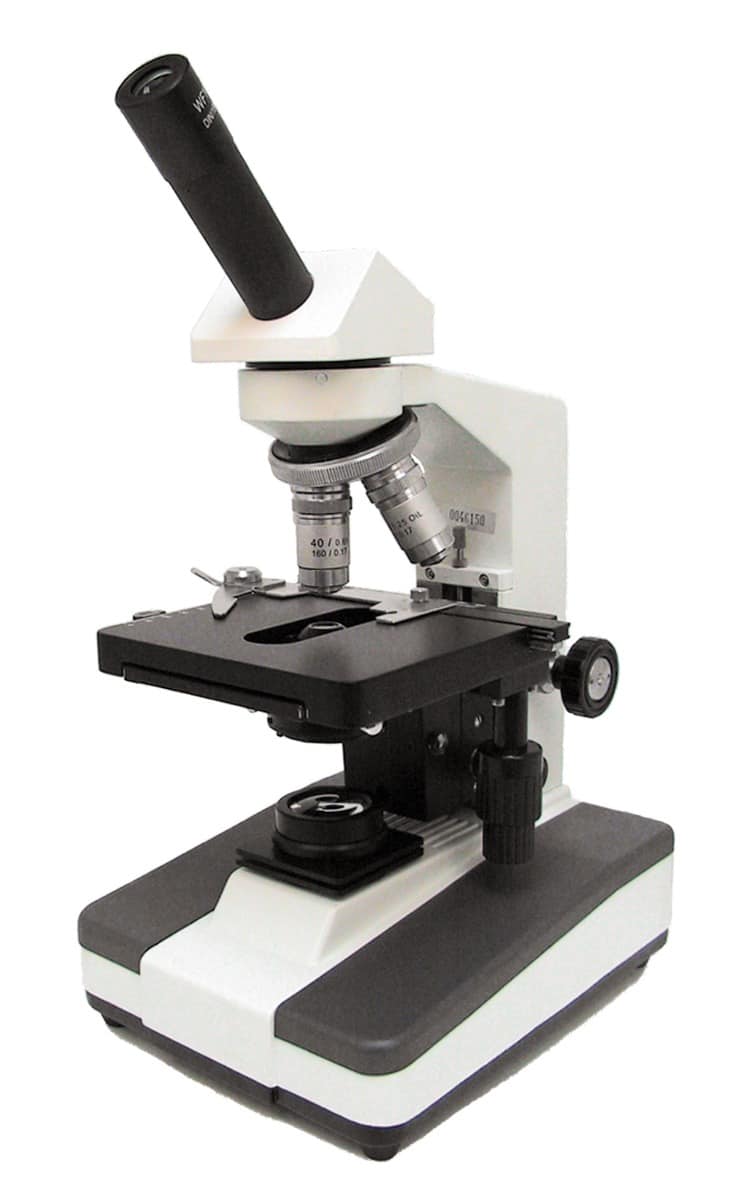

| M-M-100-LED | Monocular | 4X, 10X, 40XR, 100XR | Coarse & Fine | LED Corded | $374.00 |
| M-T-100-LED | 45º Dual View | 4X, 10X, 40XR, 100XR | Coarse & Fine | LED Corded | $395.00 |
| M-B-100-LED | Binocular | 4X, 10X, 40XR, 100XR | Coarse & Fine | LED Corded | $460.00 |
| M-TT-100-LED | Trinocular | 4X, 10X, 40XR, 100XR | Coarse & Fine | LED Corded | $490.00 |

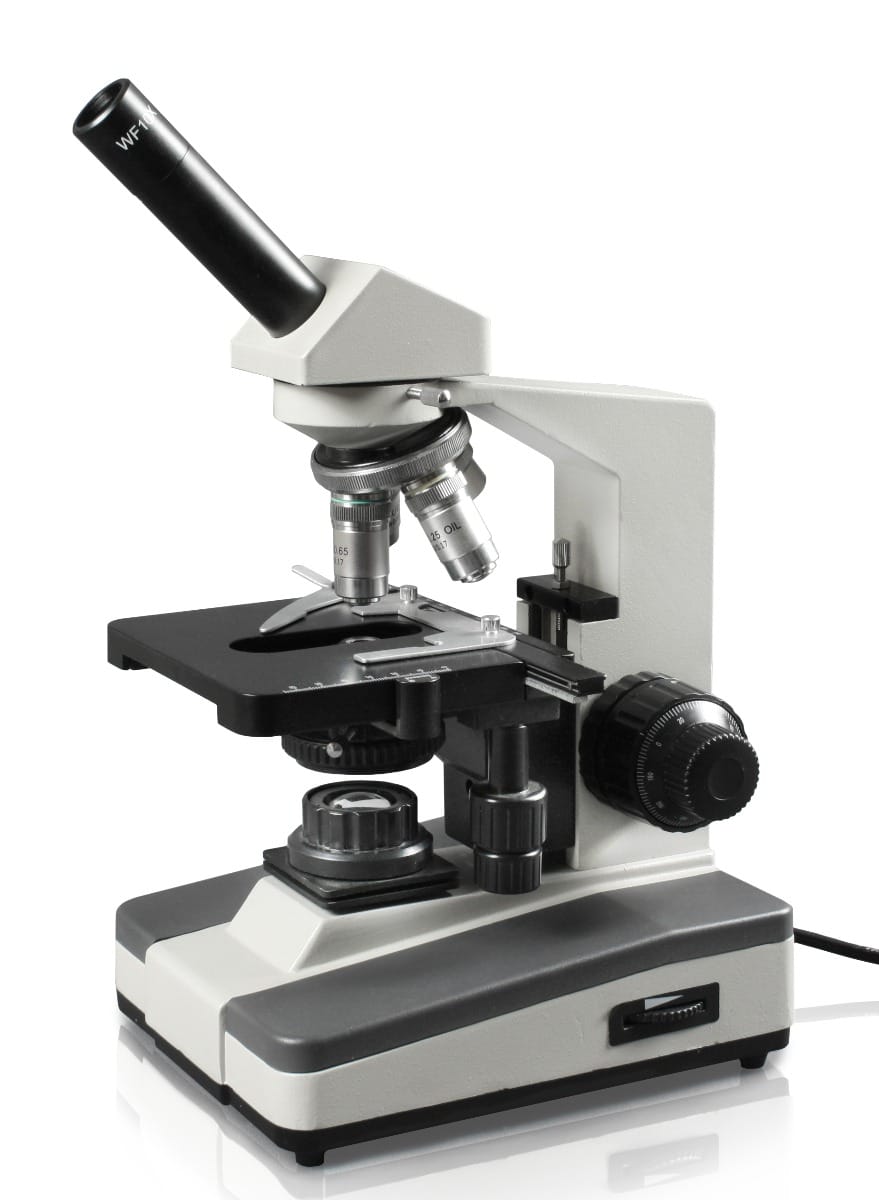

| M-CXM-100-LED | Monocular | 4X, 10X, 40XR, 100XR | Coaxial | LED Corded | $438.00 |

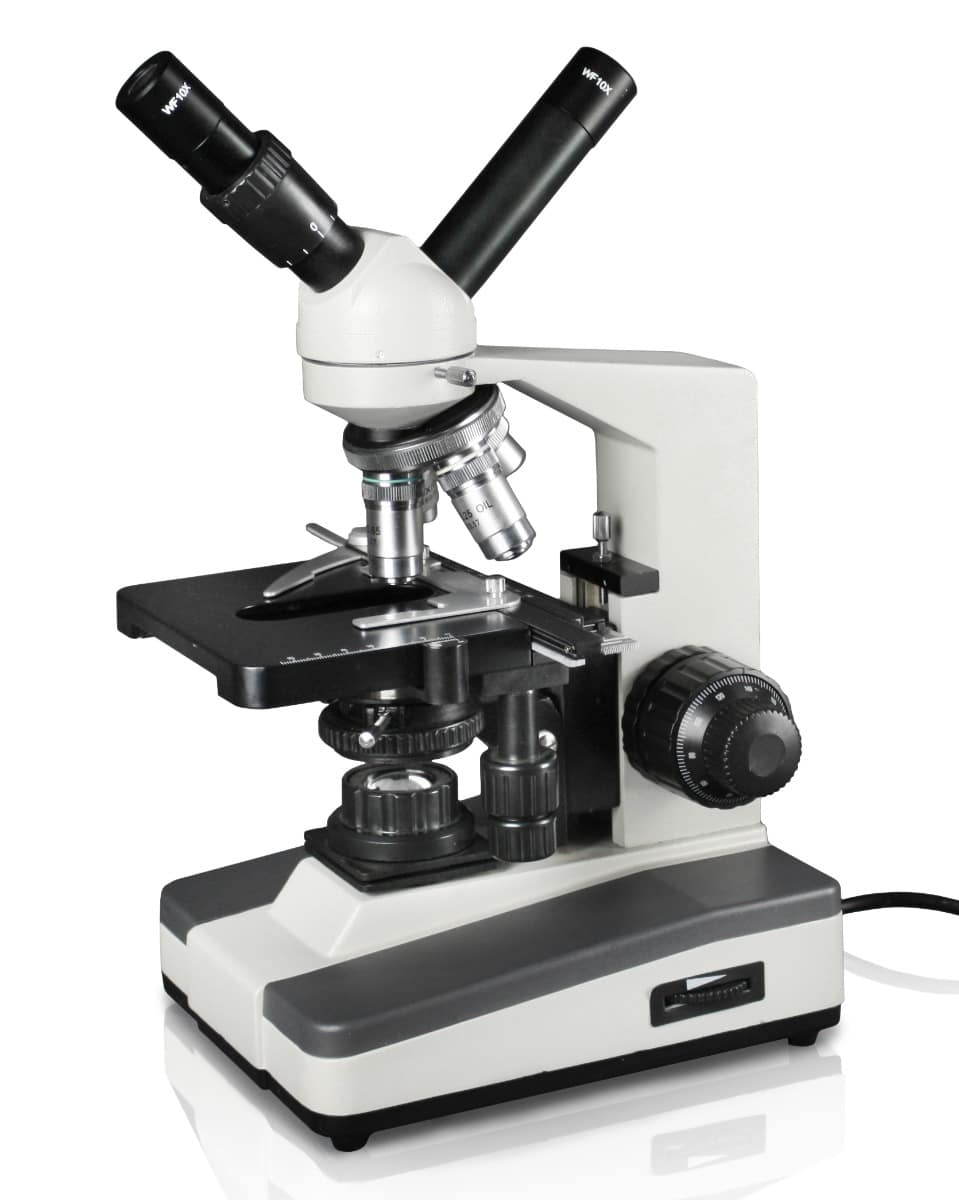

| M-CXT-100-LED | 45º Dual View | 4X, 10X, 40XR, 100XR | Coaxial | LED Corded | $527.00 |

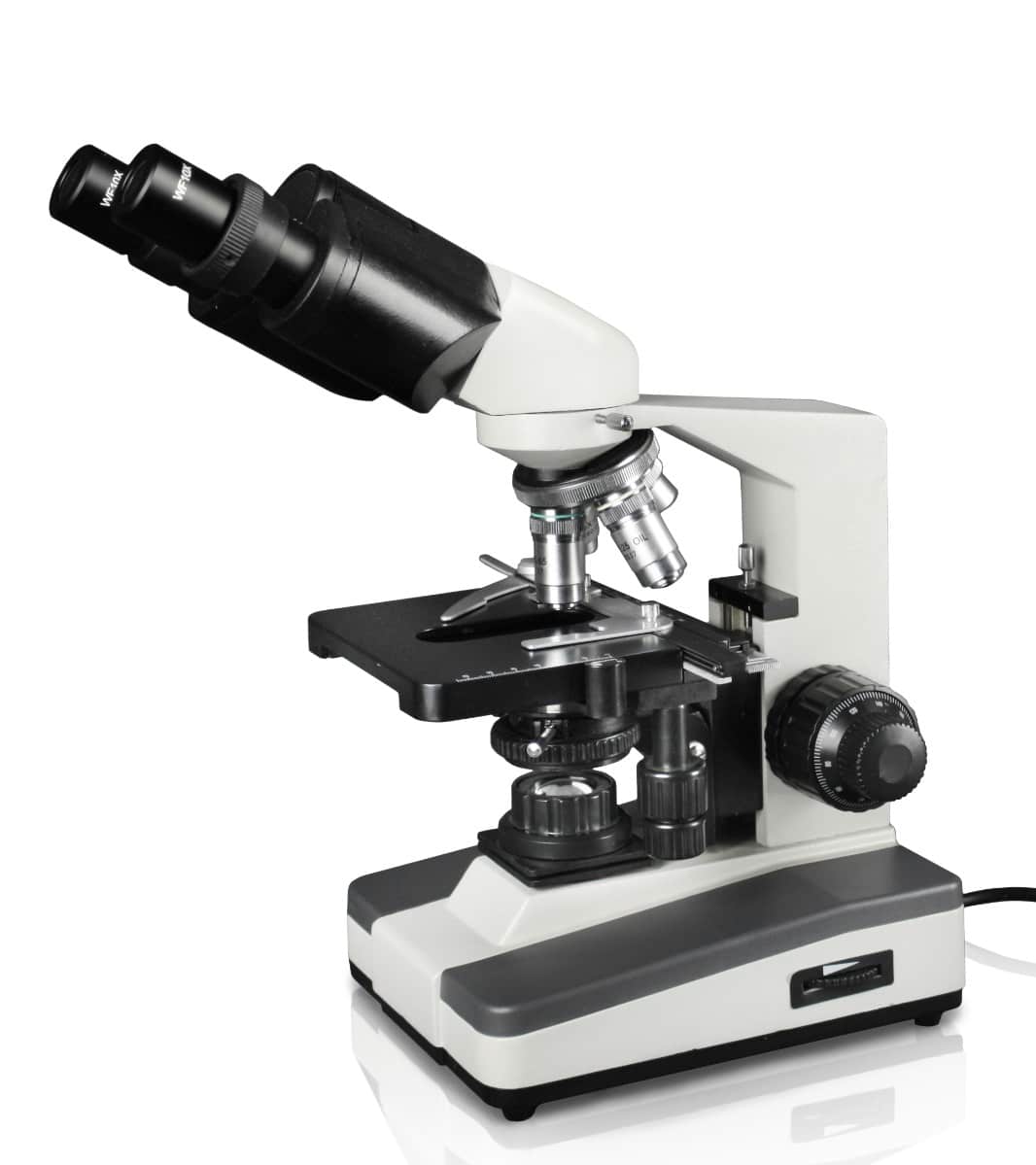

| M-CXB-100-LED | Binocular | 4X, 10X, 40XR, 100XR | Coaxial | LED Corded | $587.00 |

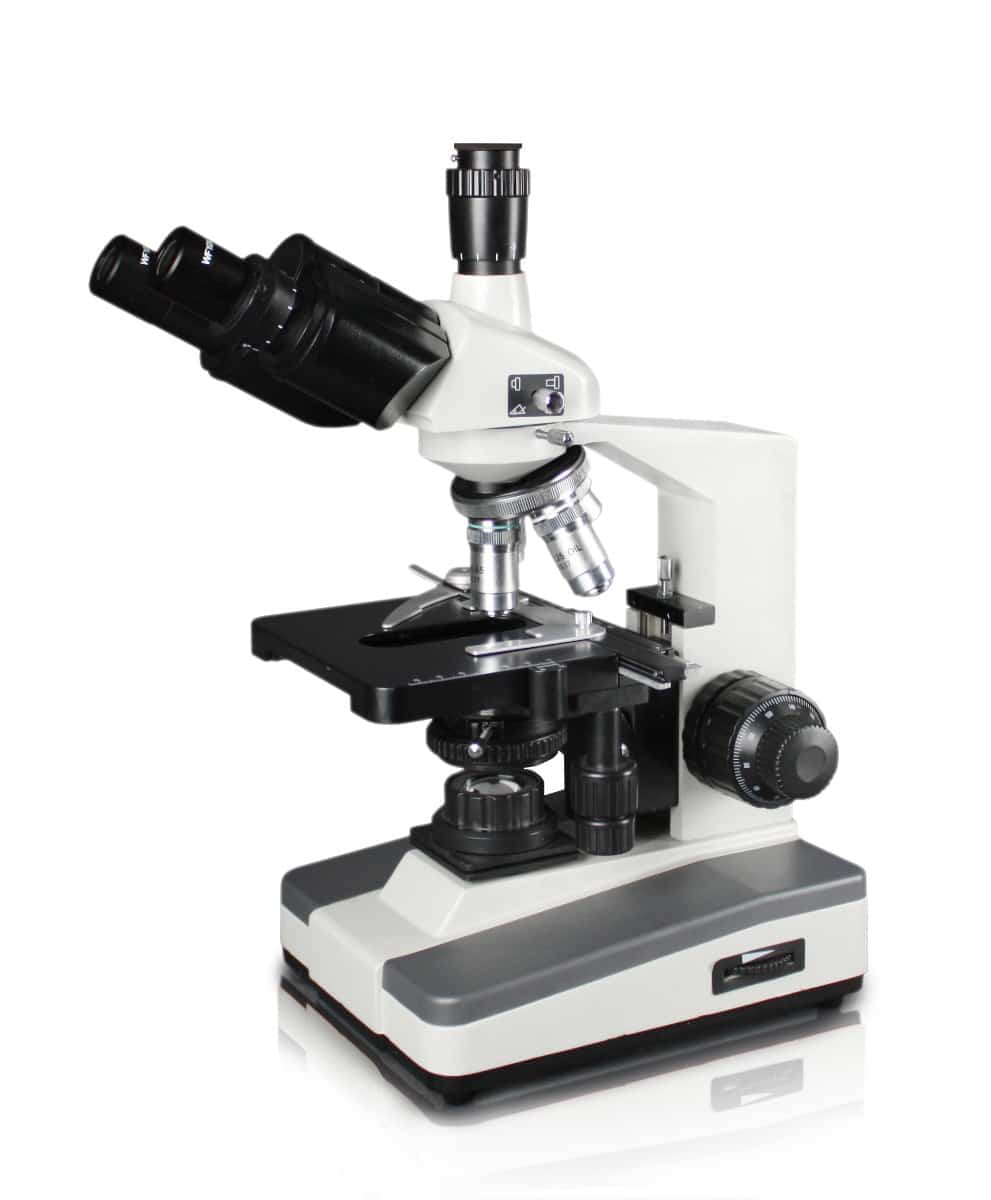

| M-CXTT-100-LED | Trinocular | 4X, 10X, 40XR, 100XR | Coaxial | LED Corded | $617.00 |
| Model | M-M-100-LED | M-T-100-LED | M-B-100-LED | M-TT-100-LED | M-CXM-100-LED | M-CXT-100-LED | M-CXB-100-LED | M-CXTT-100-LED |
| Body | Rugged cast metal stand with stain resistant finish | |||||||
| Head |
Monocular, 45° inclined, rotates 360° | Trinocular, 30° inclined, rotates 360° | ||||||
| Interpupillary Distance | N/A | 55mm to 75mm | N/A | 55mm to 75mm | ||||
| Eyepiece | 10X wide-field eyepiece with calibrated pointer | Paired 10X wide-field eyepieces – one with calibrated pointer | 10X wide-field eyepiece with calibrated pointer | Paired 10X wide-field eyepieces – one with calibrated pointer | ||||
| Nosepiece | Four position reversed nosepiece with positive stop clicks | |||||||
| Objectives | 4X, 10X, 40XR, 100XR DIN achromatic objectives are color-coded, parfocaled and parcentered | |||||||
| Stage | 5.5″ x 5.25″ built-in double layer mechanical stage with smooth X/Y calibrated movement and cross travel range of 75mm x 50mm | |||||||
| Condenser | Rack and pinion 1.25 N.A. Abbe condenser | |||||||
| Diaphragm | Iris diaphragm with swing-out filter holder | |||||||
| Focusing System |
Separate coarse and fine focus control, gear movement for smooth operation | Coaxial coarse and fine focus control, gear movement for smooth operation | ||||||
| Illumination | LED Köhler illumination with light intensity control | |||||||
| Power | 3-wire grounded power cord | |||||||
| Accessories | Vinyl dust cover and user manual | |||||||
| Warranty | Limited 5 year | |||||||
| Weight | N/A |
|---|---|
| Option | M-M-100-LED, M-T-100-LED, M-B-100-LED, M-TT-100-LED, M-CXM-100-LED, M-CXT-100-LED, M-CXB-100-LED, M-CXTT-100-LED |
