SKU WP-10EZ-IFR07
$522.45

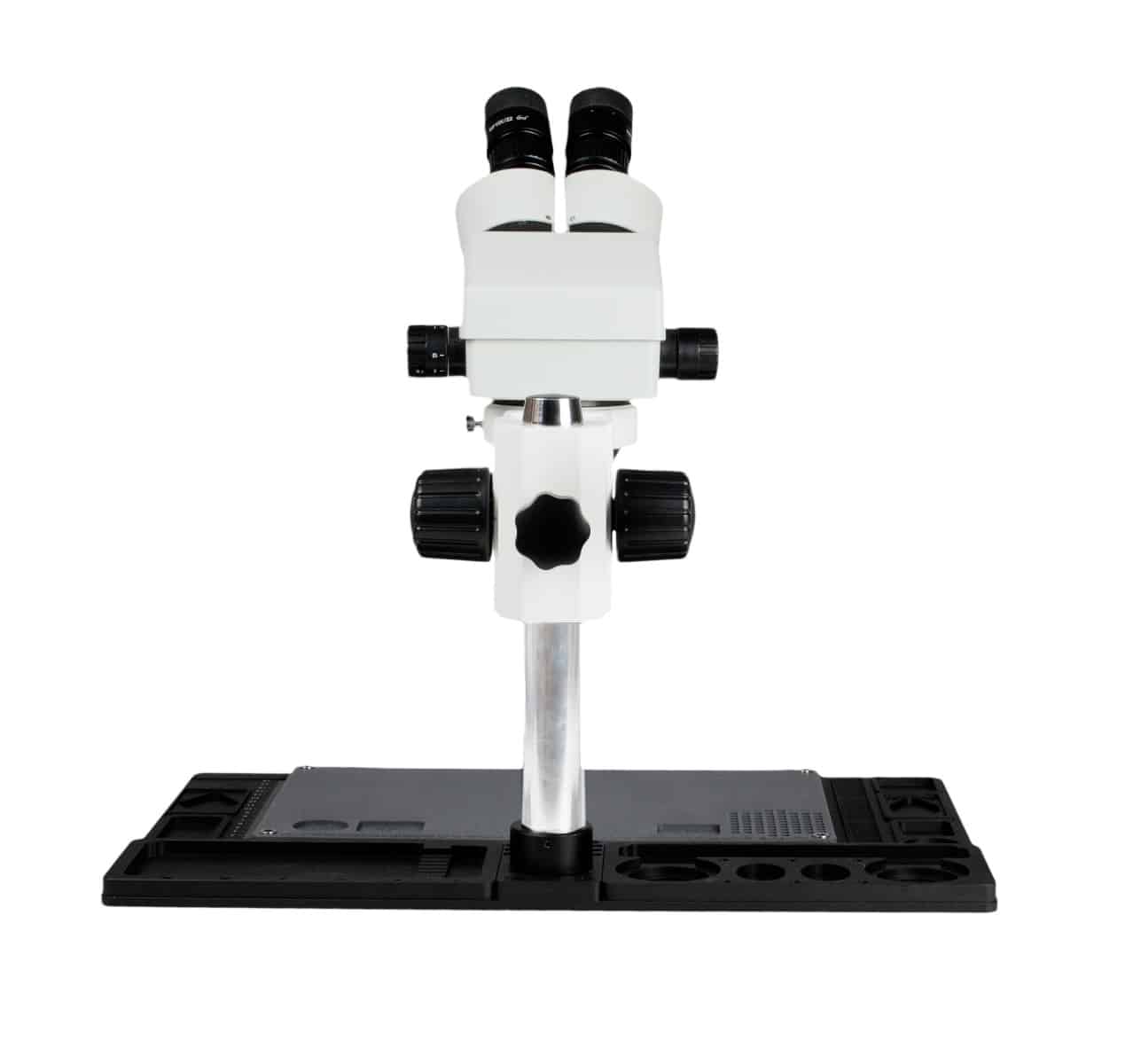

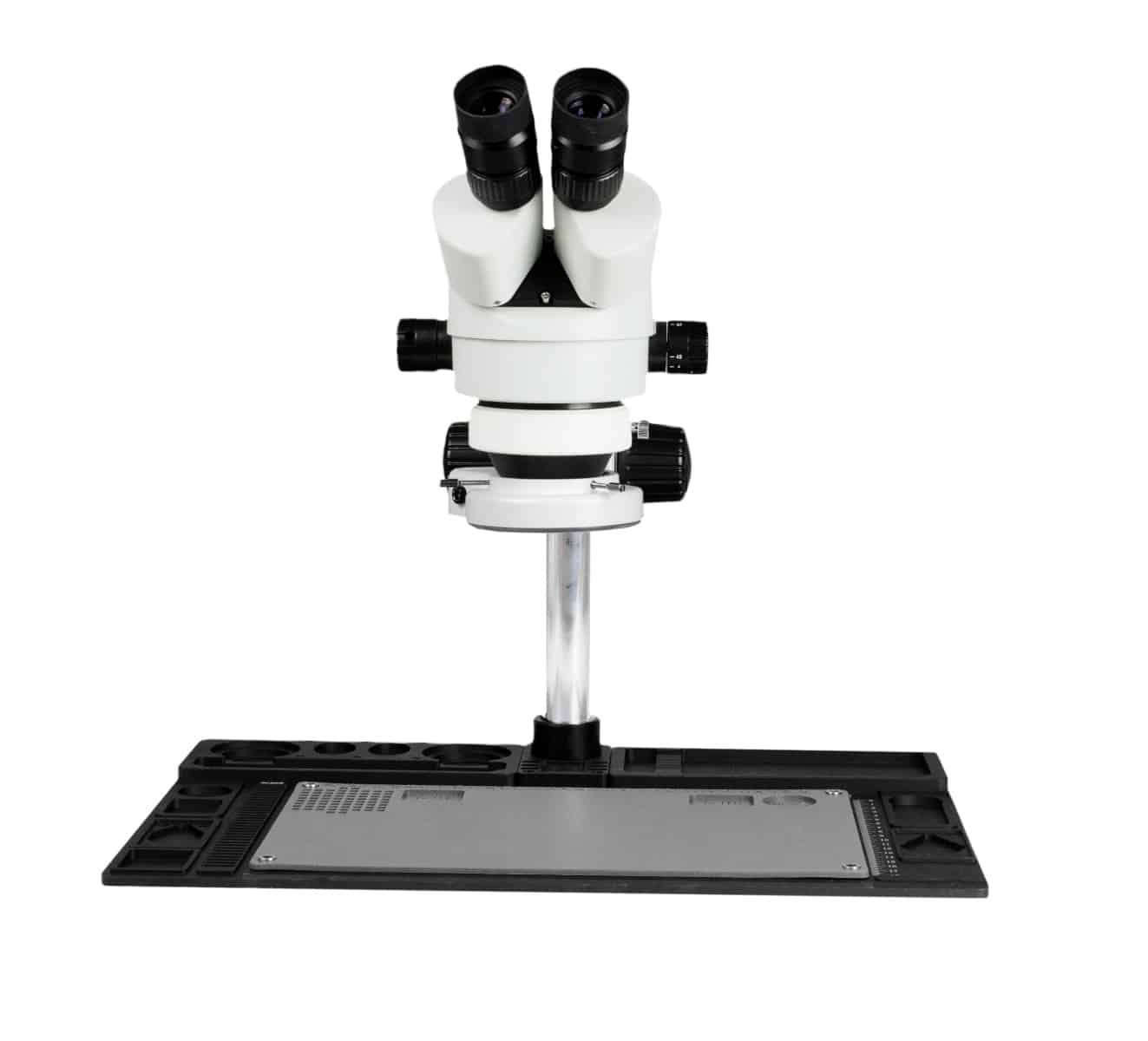

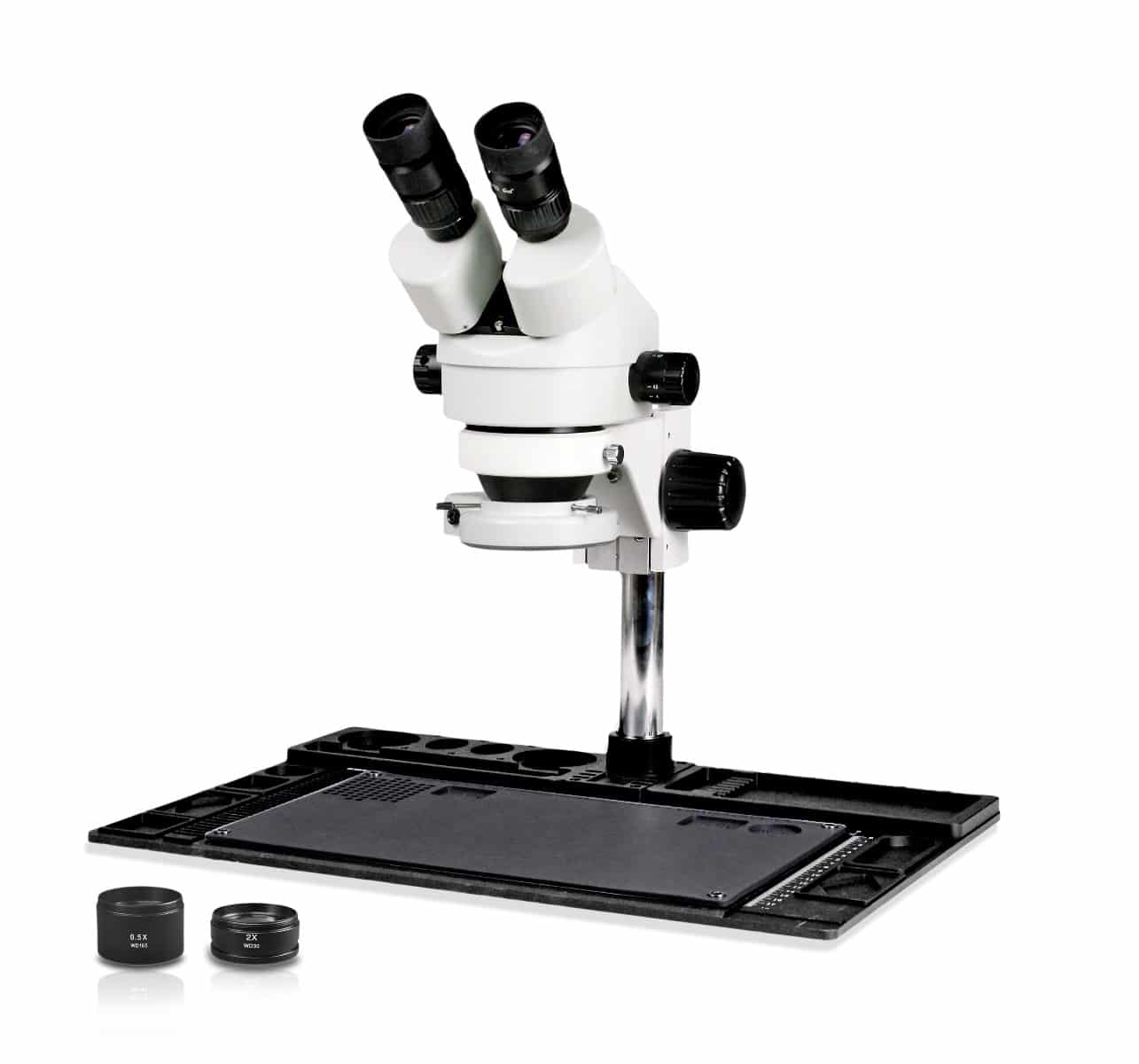

This binocular zoom stereo microscope is ideal for electronic and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or object. The base is made of aluminum alloy to give a durable and stable work space and it has multiple slots for tools and materials. The platform base includes an insulated silicon pad for anti-static repair and maintenance. The silicon pad is resistant to high temperatures up to 500°C and anti-corrosive. The pad is also easy to remove and clean. This maintenance platform creates a perfect working environment for small electronics such as circuit boards and for devices such as mobile phones. Packed in a fitted Styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty.

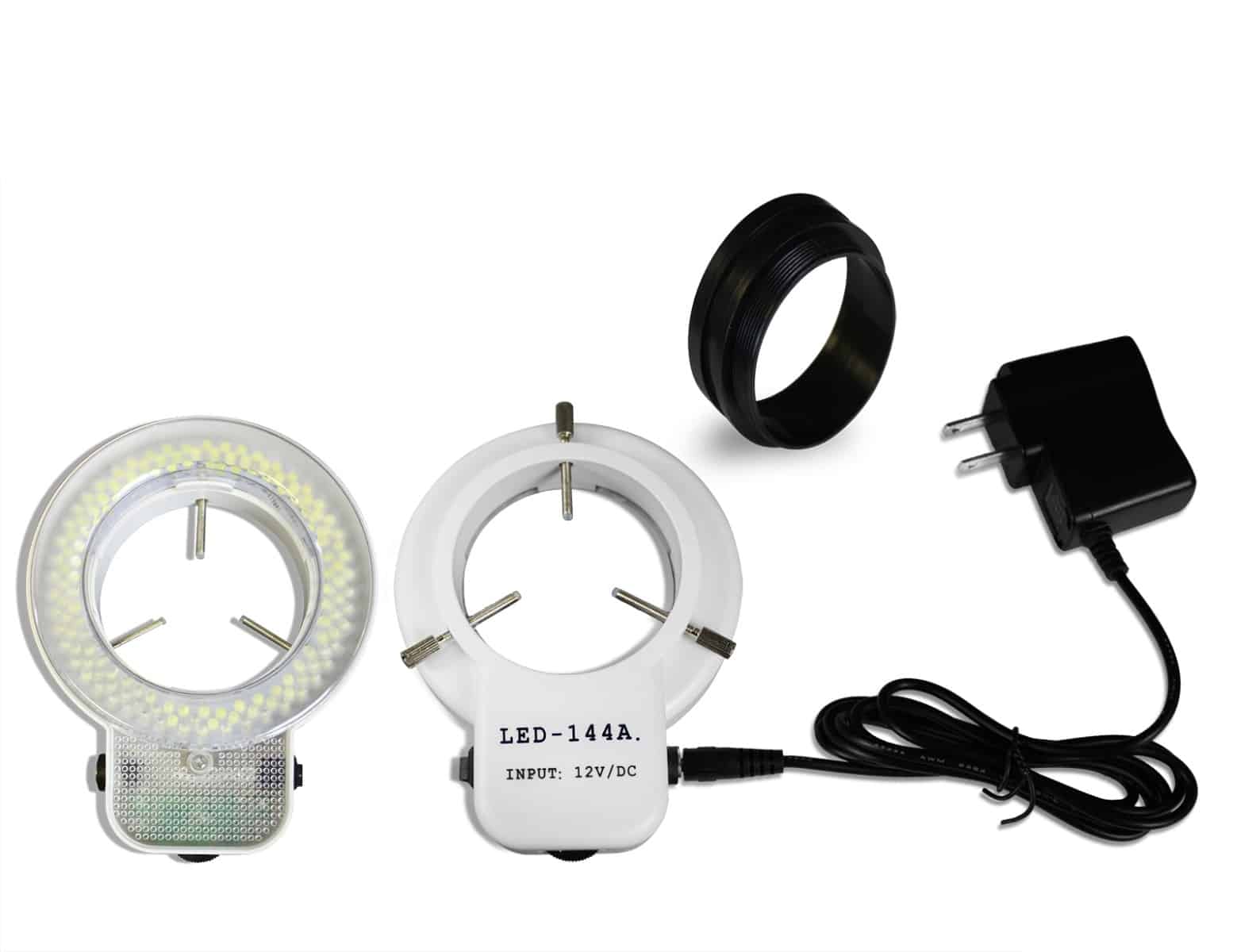

The LED ring light attaches to the microscope turret. 144 LED bulbs provide continuous 360º even distribution of light and 0 to 100% light intensity control provides full variation in brightness. Light is clear and crisp and cool-to-touch.
| Head | Binocular, 45° inclined, rotates 360°. Syncronized bilateral interpupillary adjustment of 54-76mm |
| Eyepieces | Paired 10X WF / 22mm high eyepoint. Both ocular tubes have a diopter adjustment of ±6. 2½” field of view |

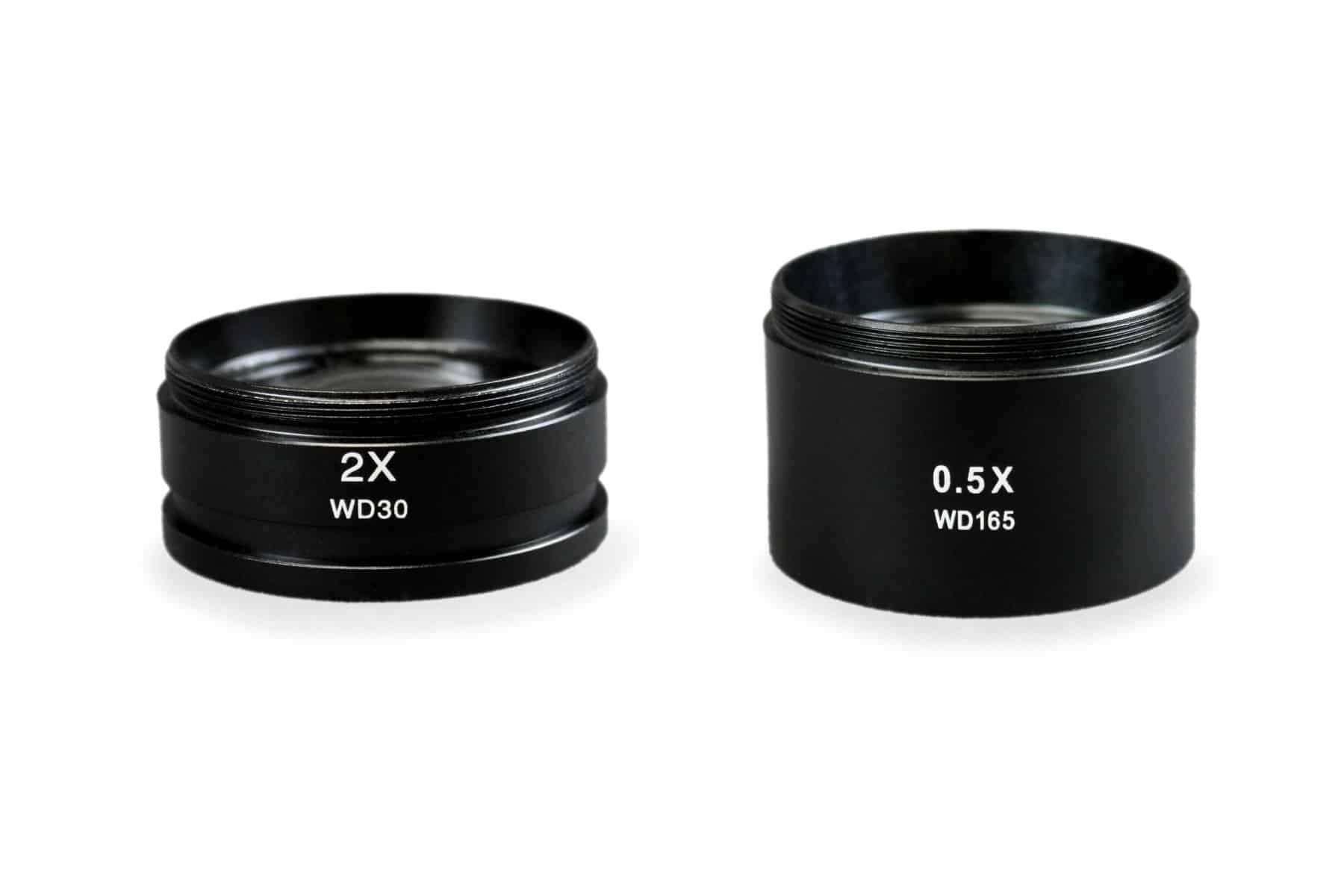

| Magnification Range | 7X – 45X; Expands to 3.5X – 90X when included auxiliary lenses are used |
| Zoom Range | 0.7X – 4.5X |
| Zoom Ratio | 1:6.4 |
| Working Distance | Up to 8″ vertical movement. Up to 4″ optical working distance |
| Focusing | Heavy duty rack and pinion focusing arm with tension adjustment |
| Stand | Pillar stand with aluminum alloy repair base, heavy support arm rotates 360° with a screw-lock |
| Light Source | 144-LED ring light with light intensity control |
| Dimensions |
18″ x 12.5″ x 15″ |
| Weight | 12.0 kg |
|---|---|
| color | black |
