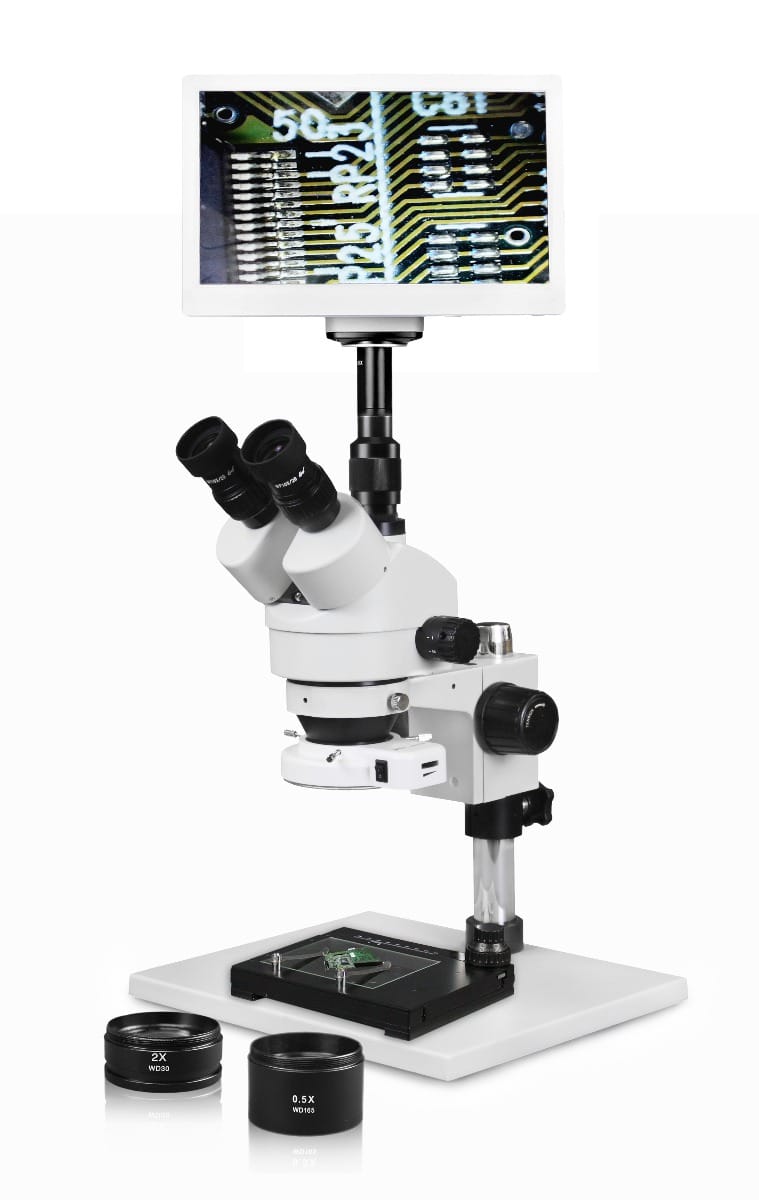

WP-1AFZ-IFR07-RET11.6-MS Simul-Focal Trinocular Zoom Stereo Microscope – 0.7X-4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, Mechanical Stage, 144-LED Ring Light, 11.6″ HD Retina Screen With 5MP Camera

WP-1AFZ-IFR07-RET11.6-MS Simul-Focal Trinocular Zoom Stereo Microscope – 0.7X-4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, Mechanical Stage, 144-LED Ring Light, 11.6″ HD Retina Screen With 5MP Camera

SKU WP-1AFZ-IFR07-RET11.6-MS

$1,063.15

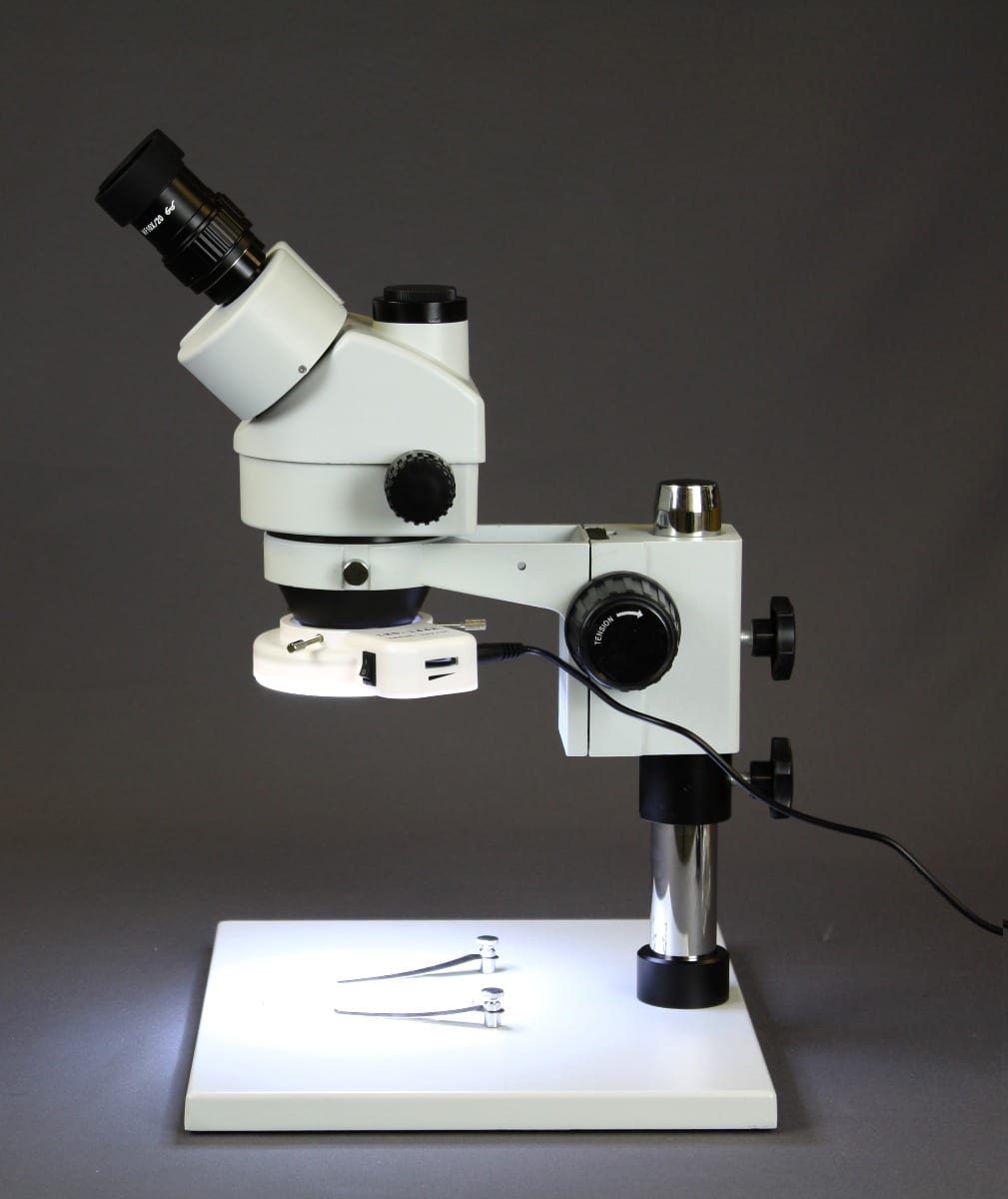

  • 45° inclined trinocular head, which rotates 360°. Simul-focal trinocular head allows the photo port and both eyepieces to be used simultaneously

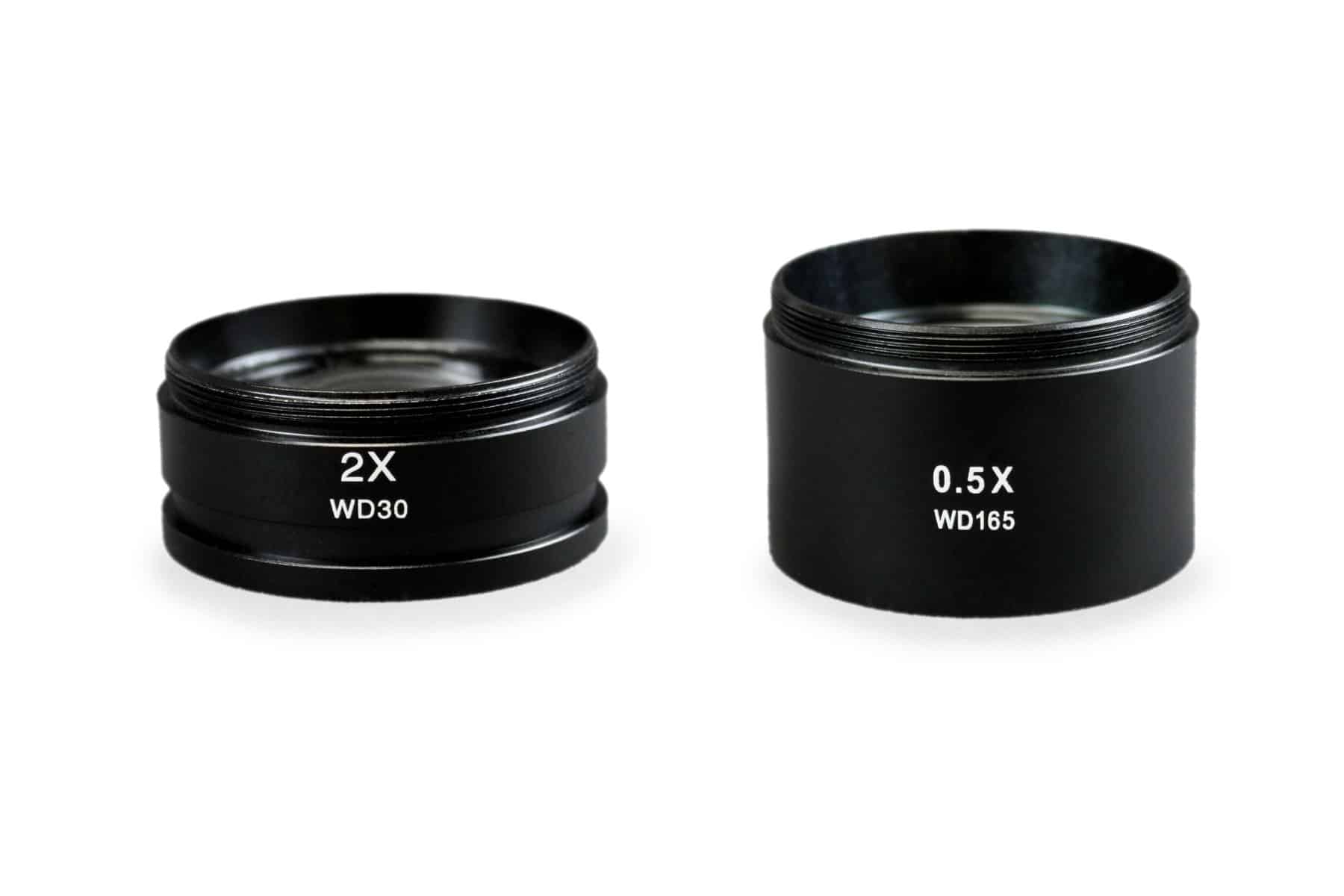

  • 7X – 45X standard magnification range. When used with the included 0.5X & 2.0X auxiliary lenses, it expands to a 3.5x—90x magnification range
  • The parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
  • Pillar stand offers a long and flexible working distance, while the large table-top base provides a solid foundation. The black and white reversible stage plate provides a contrasting background for the specimen, while the stage clips secure it in place
  • Heavy and stable support arm with a lock-screw to position the 360° rotatable optical body
  • Precise, heavy-duty rack and pinion focusing mechanism, with large knobs and adjustable tension control

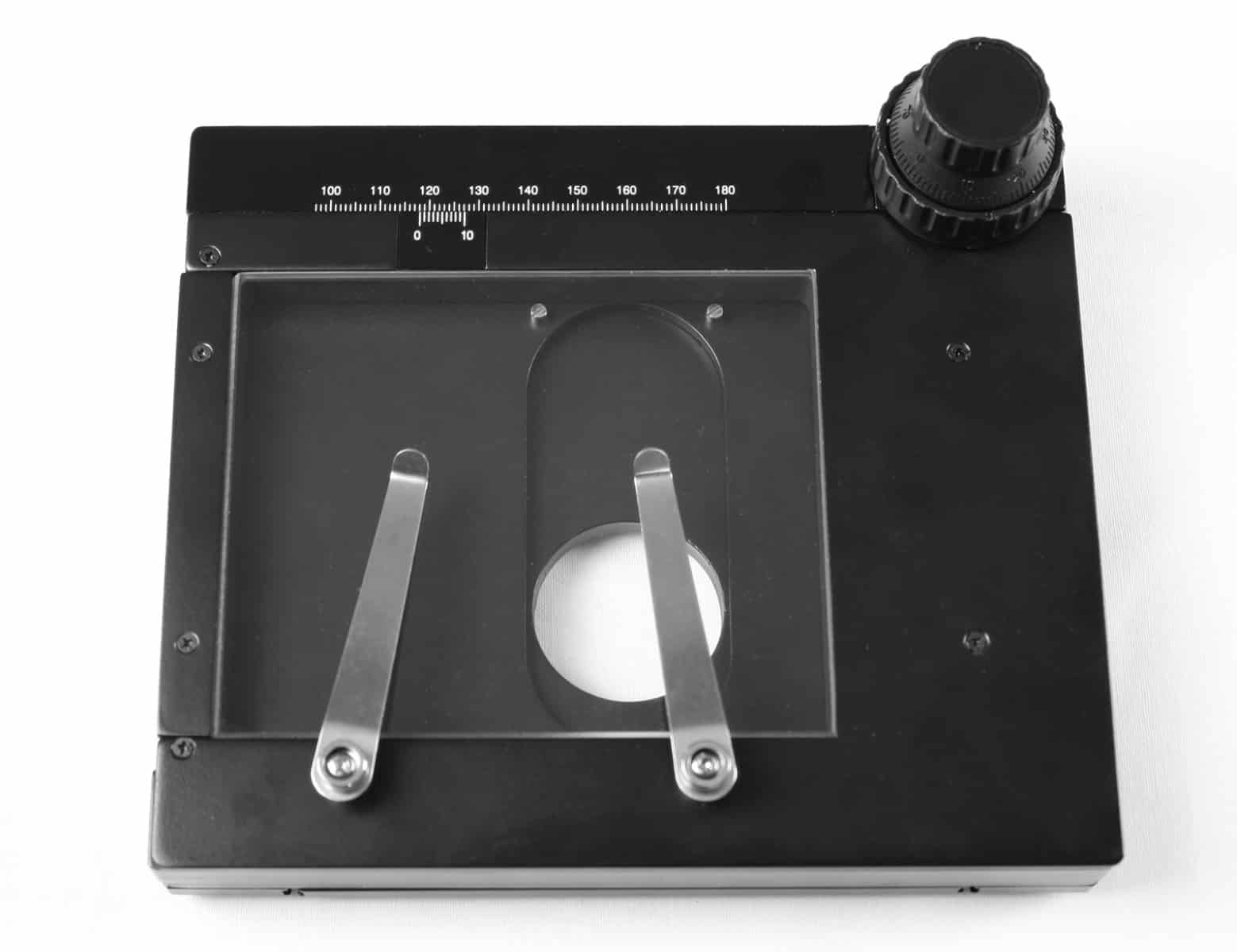

  • 2D traveling mechanical stage with glass stage plate and stage clips. Coaxial controls which allows for precise stage movement. Glass surface allows the specimen to be illuminated from below, making the specimen appear bright, but darker than the background
  • 144-LED ring light with intensity control, guarantees a clear-and-crisp, cool-to-touch white light that lasts up to 60X longer than traditional tungsten bulbs
  • 11.6″ HD retina screen with a 5MP camera offers HDMI and USB 2.0 plug-and-play computability, to capture images of the specimen being observed. It is C-mount ready and comes with a built-in SD card and measurement software
Add to Wishlist
Add to Wishlist

Description

This trinocular zoom stereo microscope is ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional or temperature-sensitive specimen or object. Features a simul-focal trinocular head which means the photo port and both eyepieces can be used simultaneously. The compact, thin design of the large base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls. The pillar stand provides a long working distance, to offer maximum flexibility when working with small or large samples. Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty.

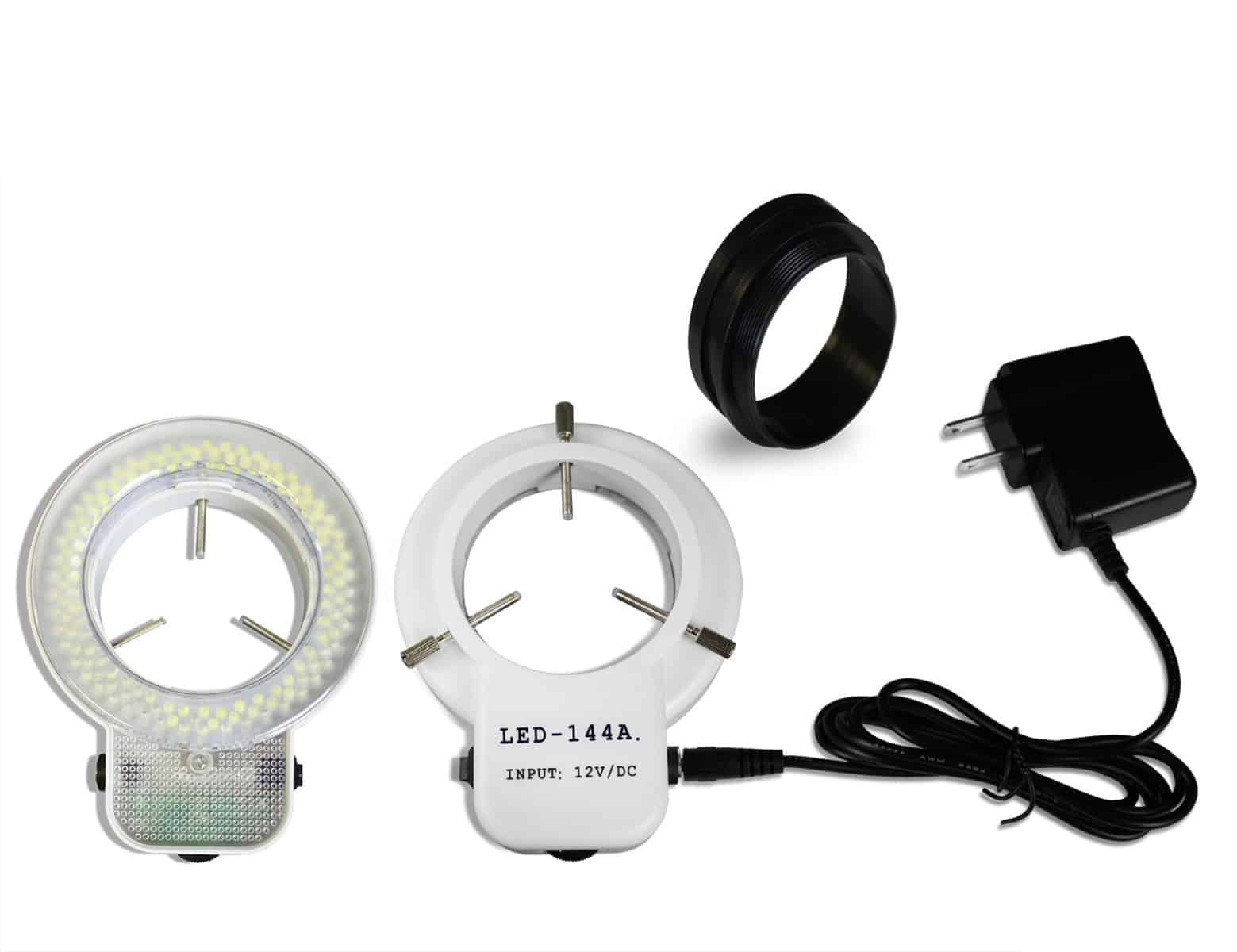

The LED ring light attaches to the microscope turret. 144 LED bulbs provide continuous 360º even distribution of light and 0 to 100% light intensity control provides full variation in brightness. Light is clear and crisp and cool-to-touch.

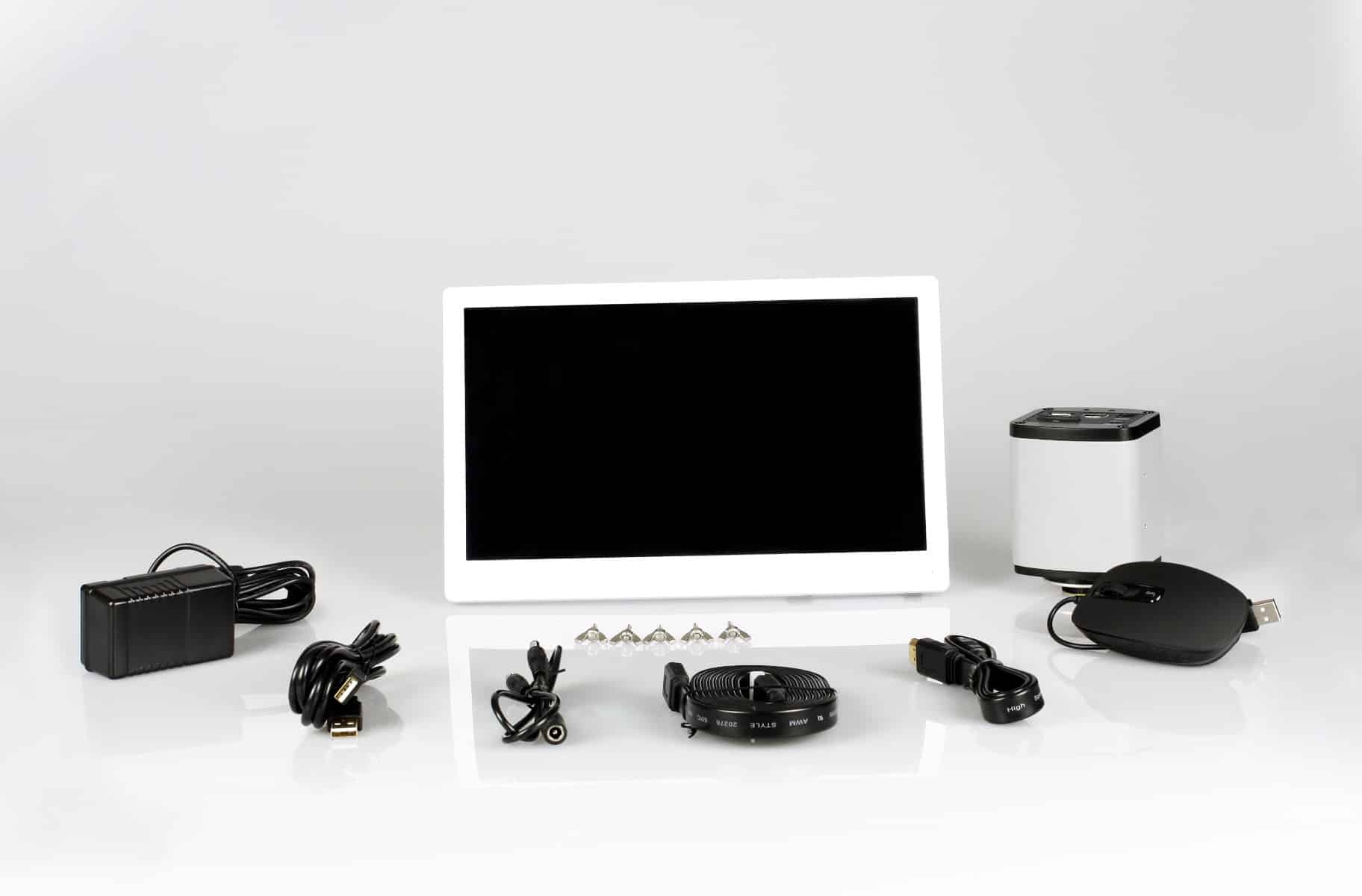

Combined HD retina screen and 5MP digital eyepiece camera for a full high-definition experience. The camera can connect to the monitor directly through the HDMI port, eliminating the need for a computer. User will be able to record videos, capture images, take measurements, save files and export directly to the included SD card. A USB mouse is also included for convenience of use.

Additional information

Weight 16.5 kg
color

black
