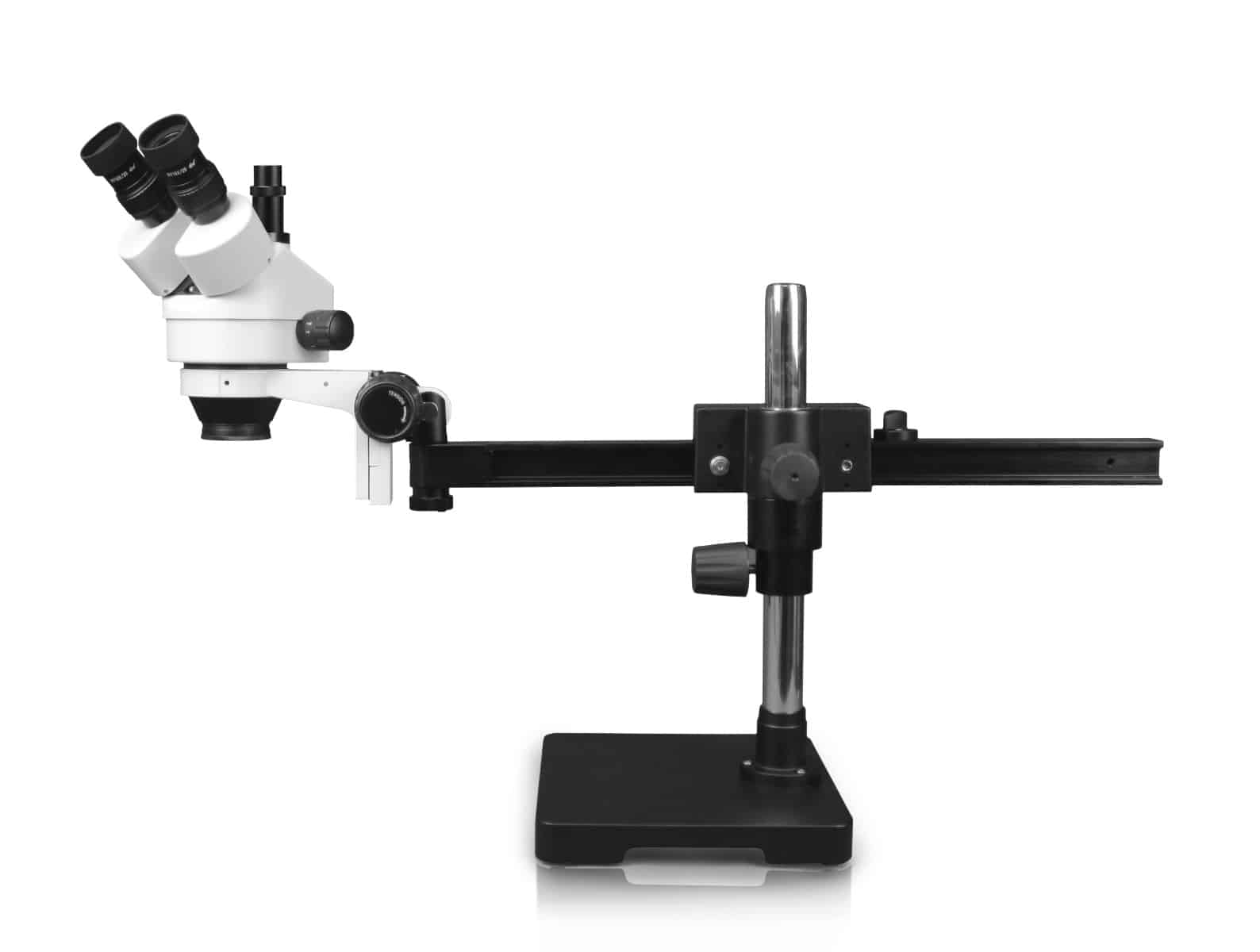

WP-2AF Simul-Focal Trinocular Zoom Stereo Microscope – 0.7X-4.5X Zoom Range

WP-2AF Simul-Focal Trinocular Zoom Stereo Microscope - 0.7X-4.5X Zoom Range

WP-2AF Simul-Focal Trinocular Zoom Stereo Microscope – 0.7X-4.5X Zoom Range

SKU WP-2AF

$424.05

  • 45° inclined trinocular head, which rotates 360°. Simul-focal trinocular head allows the photo port and both eyepieces to be used simultaneously
  • Features a 54-76mm interpupillary adjustment, while both ocular tubes are diopter adjustable, to compensate for eye-strength difference when needed
  • 7X – 45X standard magnification range, and also has a field of view of 2 ½”. The parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
  • Gliding arm boom stand offers a long and flexible working distance, while the large, solid-steel, table-top base, provides a solid foundation. The solid-cross block and brass inserts, as well as the precise, lightweight, rail assembly improve mobility and give a smooth and fluid horizontal movement
  • Precise, heavy-duty rack and pinion focusing mechanism, with large knobs and adjustable tension control
Add to Wishlist
Add to Wishlist

Description

This trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects. Features a simul-focal trinocular head which means the photo port and both eyepieces can be used simultaneously.

A friction collar secures the peg and allows the microscope to rotate around a vertical axis. Rotating, swiveling, and tilting functionalities allow for routine inspection of large samples not requiring constant horizontal movement of the microscope. It is built with a premium hard-coat anodized finish, making it abrasion-resistant, and giving it a hard surface.

Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.

Specifications

Head Simul-focal trinocular, 45° inclined, rotates 360°. C-mount ready. Bilateral interpupillary adjustment of 54-76mm
Eyepieces Paired 10X WF / 22mm high eyepoint. Both ocular tubes have a diopter adjustment of ±6. 2½” field of view
Magnification Range 7X – 45X
Zoom Range 0.7X – 4.5X
Zoom Ratio 1:6.4
Working Distance 100mm standard
Focusing Heavy duty rack and pinion focusing arm with tension adjustment
Stand Gliding arm boom stand with heavy rectangular base
Light Source None
Dimensions
 24″ x 10″ x 17″

Additional information

Weight 45.0 kg
color

black
