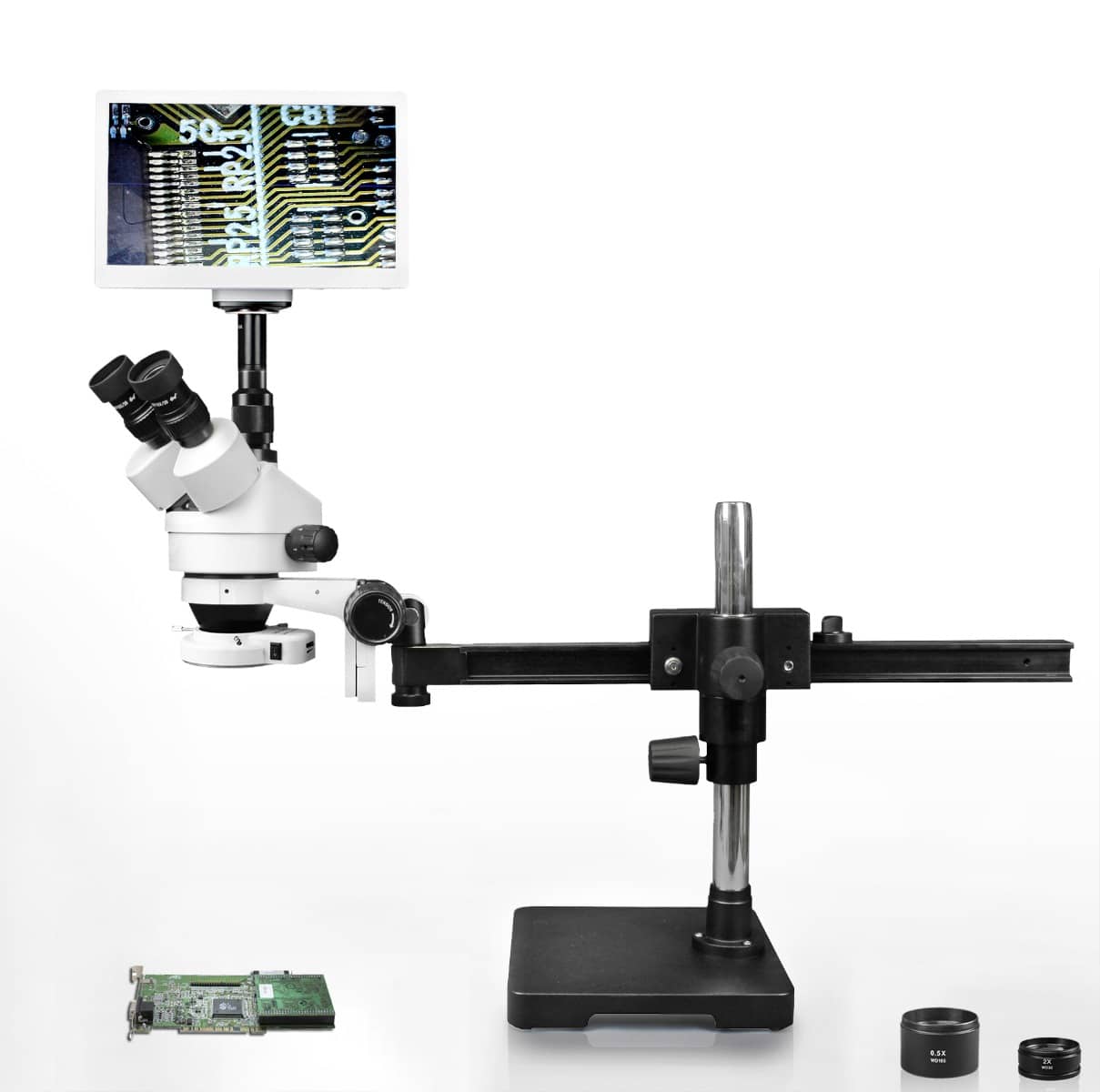

WP-2AFZ-IFR07-RET11.6 Simul-Focal Trinocular Zoom Stereo Microscope – 0.7X-4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, 144-LED Ring Light, 11.6″ HD Retina Screen With 5MP Camera

WP-2AFZ-IFR07-RET11.6 Simul-Focal Trinocular Zoom Stereo Microscope – 0.7X-4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, 144-LED Ring Light, 11.6″ HD Retina Screen With 5MP Camera

SKU WP-2AFZ-IFR07-RET11.6

$1,007.25

  • 45° inclined trinocular head, which rotates 360°. Simul-focal trinocular head allows the photo port and both eyepieces to be used simultaneously
  • Features a 54-76mm interpupillary adjustment, while both ocular tubes are diopter adjustable, to compensate for eye-strength difference when needed

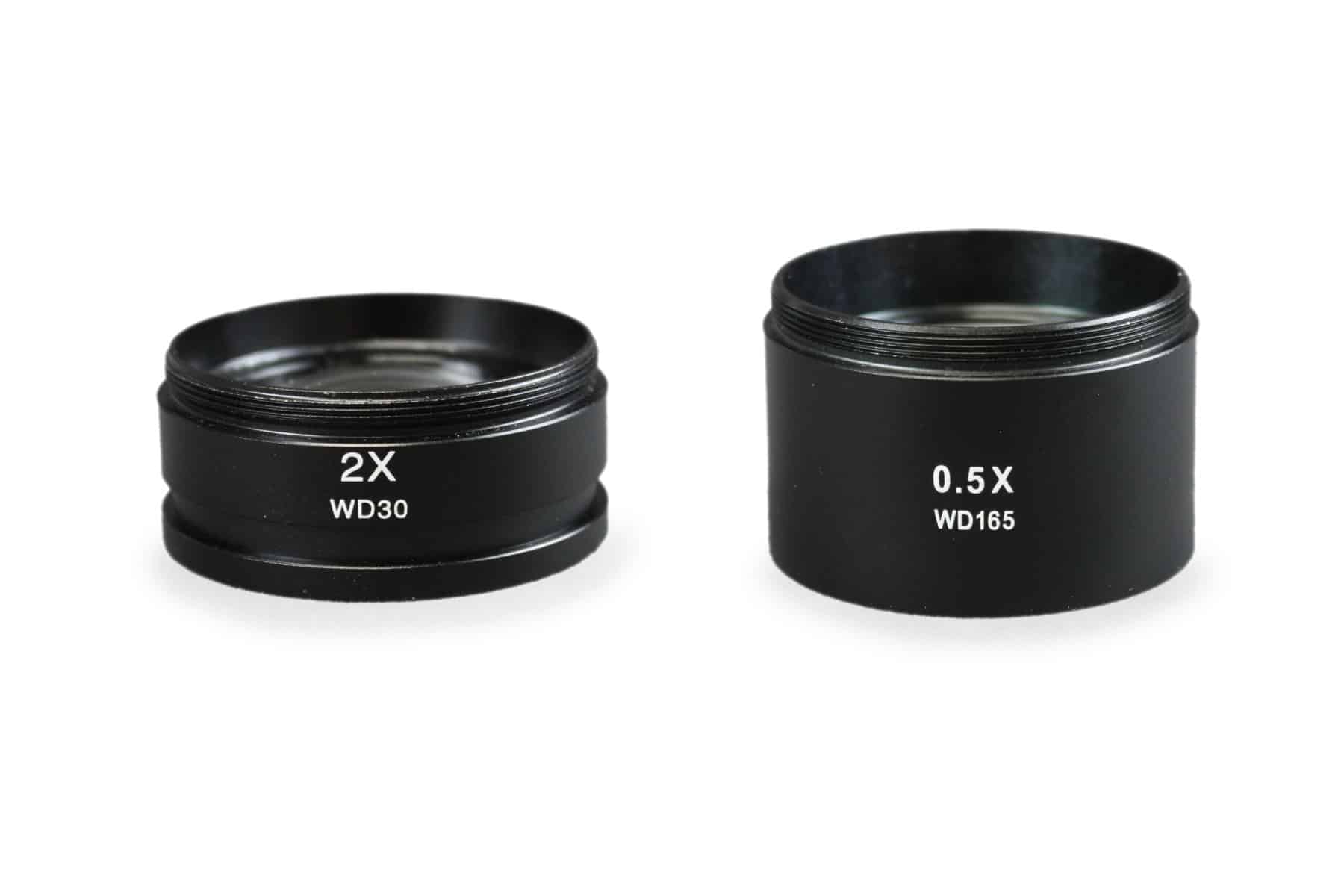

  • 7X – 45X standard magnification range. When used with the included 0.5X & 2.0X auxiliary lenses, it expands to a 3.5x—90x magnification range. The parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
  • Gliding arm boom stand offers a long and flexible working distance, while the large, solid-steel, table-top base, provides a solid foundation. The solid-cross block and brass inserts, as well as the precise, lightweight, rail assembly improve mobility and give a smooth and fluid horizontal movement
  • Precise, heavy-duty rack and pinion focusing mechanism, with large knobs and adjustable tension control
  • 144-LED ring light with intensity control, guarantees a clear-and-crisp, cool-to-touch white light that lasts up to 60X longer than traditional tungsten bulbs
  • 11.6″ HD retina screen with a 5MP camera offers HDMI and USB 2.0 plug-and-play computability, to capture images of the specimen being observed. It is C-mount ready and comes with a built-in SD card and measurement software
Add to Wishlist
Add to Wishlist

Description

This trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects. Features a simul-focal trinocular head which means the photo port and both eyepieces can be used simultaneously. A friction collar secures the peg and allows the microscope to rotate around a vertical axis. Rotating, swiveling, and tilting functionalities allow for routine inspection of large samples not requiring constant horizontal movement of the microscope. It is built with a premium hard-coat anodized finish, making it abrasion-resistant, and giving it a hard surface. Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.

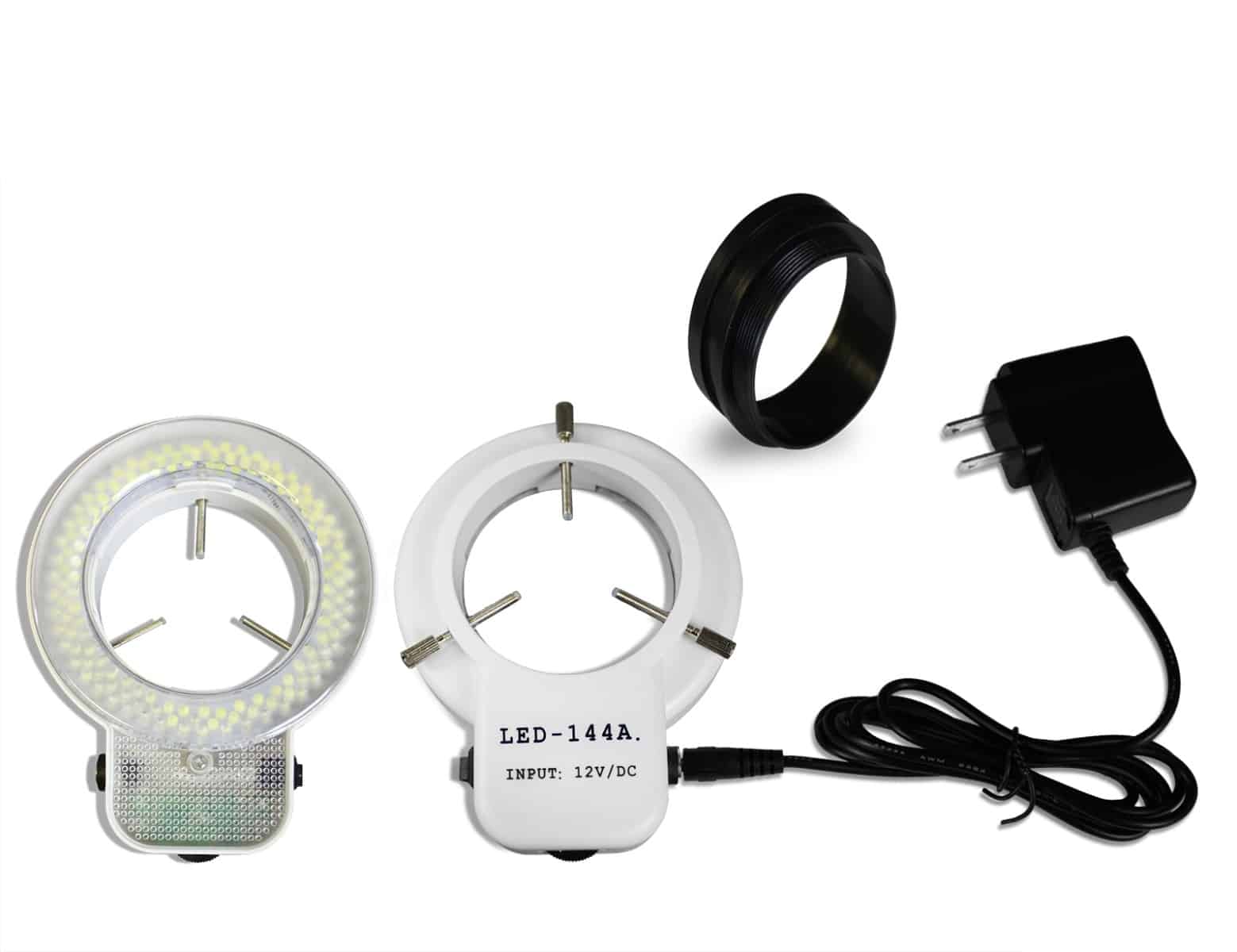

The LED ring light attaches to the microscope turret. 144 LED bulbs provide continuous 360º even distribution of light and 0 to 100% light intensity control provides full variation in brightness. Light is clear and crisp and cool-to-touch.

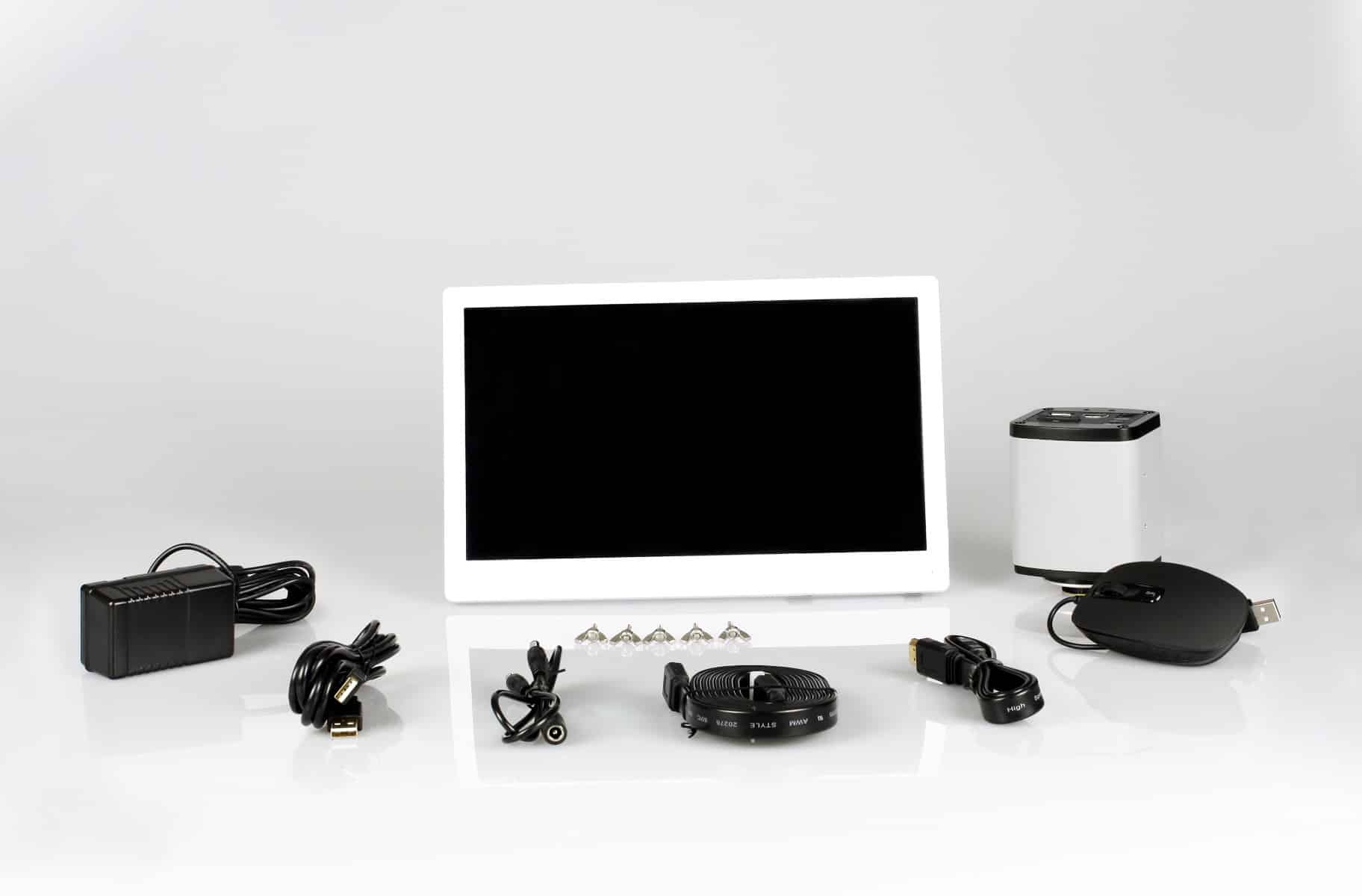

Combined HD retina screen and 5MP digital eyepiece camera for a full high-definition experience. The camera can connect to the monitor directly through the HDMI port, eliminating the need for a computer. User will be able to record videos, capture images, take measurements, save files and export directly to the included SD card. A USB mouse is also included for convenience of use.

Specifications

Head Simul-focal trinocular, 45° inclined, rotates 360°. C-mount ready. Bilateral interpupillary adjustment of 54-76mm
Eyepieces Paired 10X WF / 22mm high eyepoint. Both ocular tubes have a diopter adjustment of ±6. 2½” field of view
Magnification Range 7X – 45X; Expands to 3.5X – 90X when included auxiliary lenses are used
Zoom Range 0.7X – 4.5X
Zoom Ratio 1:6.4
Working Distance 100mm standard
Focusing Heavy duty rack and pinion focusing arm with tension adjustment
Stand Gliding arm boom stand with heavy rectangular base
Light Source 144-LED ring light with light intensity control
Dimensions
24″ x 10″ x 17″

Additional information

Weight 49.0 kg
color

black
