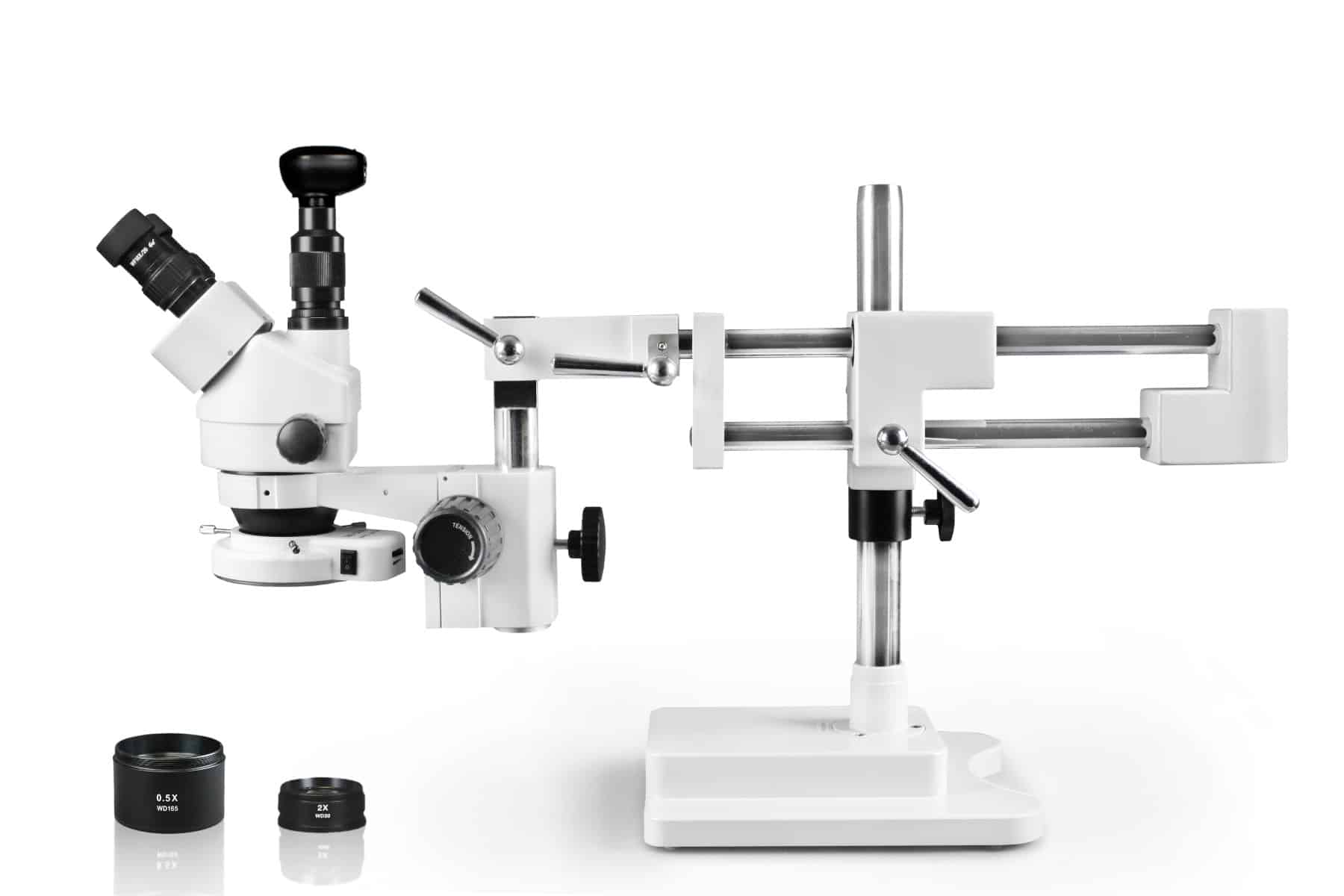

WP-5FZ-IFR07-3N Simul-Focal Trinocular Zoom Stereo Microscope – 0.7X – 4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, 144-LED Ring Light, 3MP Digital Eyepiece Camera

WP-5FZ-IFR07-3N Simul-Focal Trinocular Zoom Stereo Microscope - 0.7X - 4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, 144-LED Ring Light, 3MP Digital Eyepiece Camera
WP-5FZ-IFR07-3N Simul-Focal Trinocular Zoom Stereo Microscope - 0.7X - 4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, 144-LED Ring Light, 3MP Digital Eyepiece Camera - Image 2
WP-5FZ-IFR07-3N Simul-Focal Trinocular Zoom Stereo Microscope - 0.7X - 4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, 144-LED Ring Light, 3MP Digital Eyepiece Camera - Image 3
WP-5FZ-IFR07-3N Simul-Focal Trinocular Zoom Stereo Microscope - 0.7X - 4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, 144-LED Ring Light, 3MP Digital Eyepiece Camera - Image 4
WP-5FZ-IFR07-3N Simul-Focal Trinocular Zoom Stereo Microscope - 0.7X - 4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, 144-LED Ring Light, 3MP Digital Eyepiece Camera - Image 5

WP-5FZ-IFR07-3N Simul-Focal Trinocular Zoom Stereo Microscope – 0.7X – 4.5X Zoom Range, 0.5X & 2.0X Auxiliary Lenses, 144-LED Ring Light, 3MP Digital Eyepiece Camera

SKU WP-5FZ-IFR07-3N

$729.00

  • 45° inclined trinocular head, which rotates 360°. Simul-focal trinocular head allows the photo port and both eyepieces to be used simultaneously
  • Features a 54-76mm interpupillary adjustment, while both ocular tubes are diopter adjustable, to compensate for eye-strength difference when needed
  • 7X – 45X standard magnification range, that when used with the included 0.5X & 2X auxiliary lens, expands to a 3.5X – 90X magnification range. The parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
  • Large-and-stable double arm boom stand offers a long and flexible working distance, while the advanced ball-bearing technology allows the arm to glide with little resistance. The solid-steel, table-top, rectangular base provides a solid foundation to fit your observational needs
  • Precise, heavy-duty rack and pinion focusing mechanism, with large knobs and adjustable tension control
  • 144-LED ring light with intensity control, guarantees a clear-and-crisp, cool-to-touch white light that lasts up to 60X longer than traditional tungsten bulbs
  • 3MP digital eyepiece camera captures images and records live videos of the specimen being observed. It offers USB 2.0 plug-and-play compatibility, and comes with user-friendly imaging software
Add to Wishlist
Add to Wishlist

Description

This trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects. Features a simul-focal trinocular head which means the photo port and both eyepieces can be used simultaneously. The solid cross block and brass inserts improve movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating, swiveling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas; making it sure to meet your flexibility requirements. Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual. 5-year limited warranty.

The LED ring light attaches to the microscope turret. 144 LED bulbs provide continuous 360º even distribution of light and 0 to 100% light intensity control provides full variation in brightness. Light is clear and crisp and cool-to-touch.

The 3MP digital eyepiece camera is easy to use. Simply install the imaging software and attach the camera on the trinocular port to observe still images and record live videos of the specimen.

Specifications

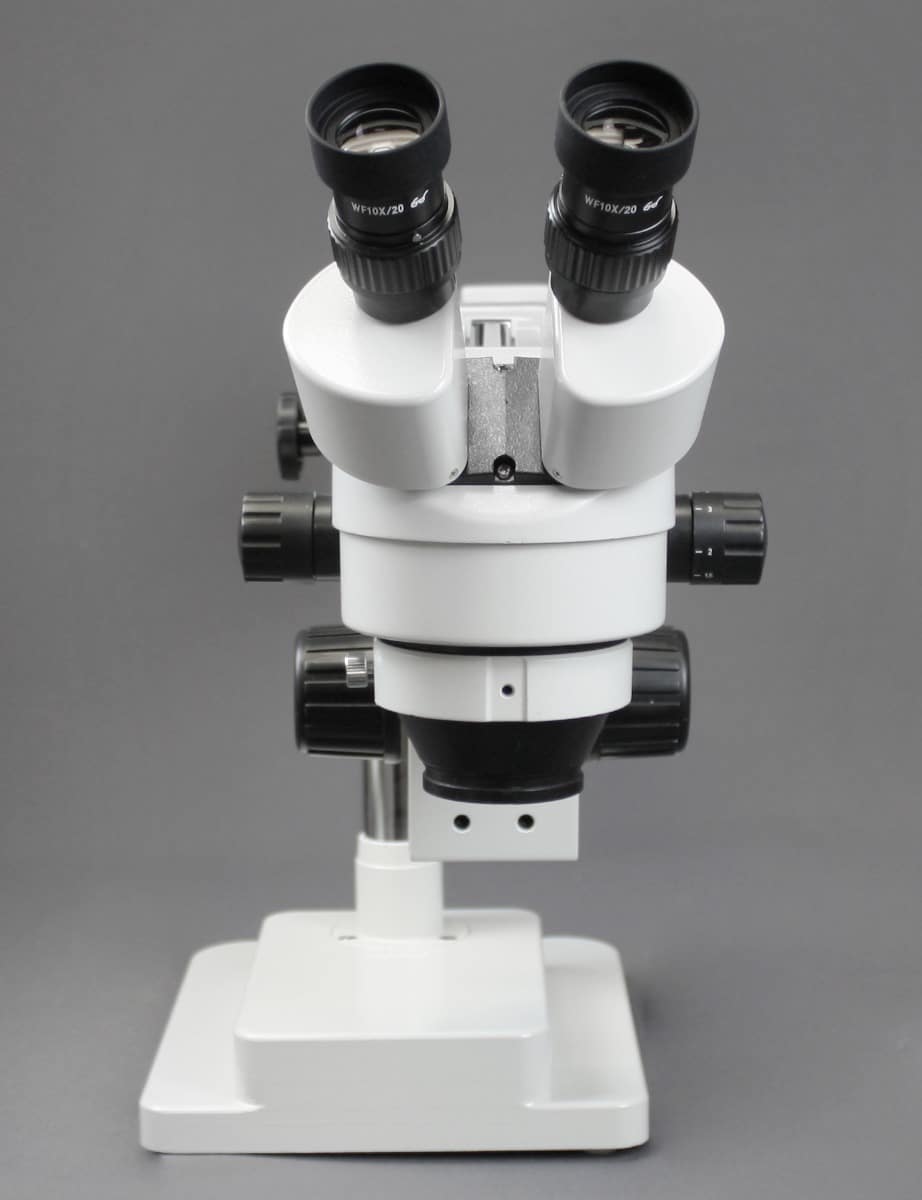

Head Simul-focal trinocular, 45° inclined, rotates 360°. C-mount ready. Bilateral interpupillary adjustment of 54-76mm
Eyepieces Paired 10X WF / 22mm high eyepoint. Both ocular tubes have a diopter adjustment of ±6. 2½” field of view
Magnification Range 7X – 45X; Expands to 3.5X – 90X when included auxiliary lenses are used
Zoom Range 0.7X – 4.5X
Zoom Ratio 1:6.4
Working Distance 100mm standard
Focusing Heavy duty rack and pinion focusing arm with tension adjustment
Stand Double arm ball-bearing boom stand with heavy rectangular base
Light Source 144-LED ring light with light intensity control
Dimensions
 22″ x 14″ x 26″

Additional information

Weight 50.0 kg
