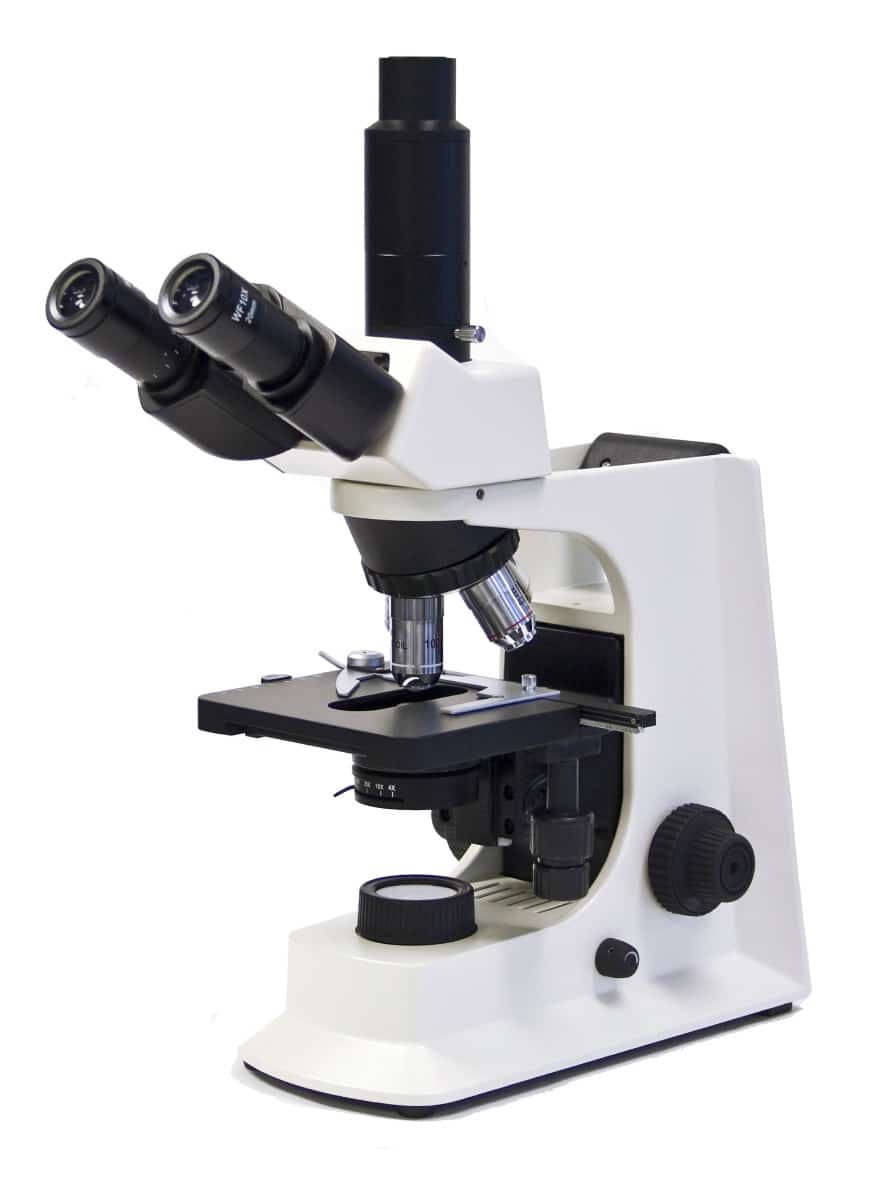

SKU 1000 Series Infinity Microscopes
Price range: $980.00 through $1,265.00
These 1000 series microscopes deliver quality results and features infinity corrected optics that enhance image quality and allows objectives to remain parfocaled when optical components are added or removed. The rectangular shape and cast aluminum stand are vibration proof and provides a strong and stable operating base. The frame and handle makes this microscope easy to carry and move in any work setting. The 1000 series microscope is versatile and suitable for use in clinics, research laboratories, or multidisciplinary professional training in advanced life sciences. Packed in a fitted Styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty excluding bulbs. CSA approved
| ITEM NO. | HEAD | EYEPIECES | INFINITY SEMI-PLAN DIN OBJECTIVES | ILLUMINATION | PRICE |
| 1008 | Binocular | 10X wide-field | 4X, 10X, 40XS, 100XS (oil) | 3W LED | $ 980.00 |
| 1010 | Trinocular | 10X wide-field | 4X, 10X, 40XS, 100XS (oil) | 3W LED | $1,265.00 |
| Model | 1008 | 1010 |
| Body | Rectangular, cast aluminum stand with integrated handle on the back | |
| Head |
Sidentopf binocular, 30° inclined, rotates 360° | Siedentopf trinocular, 30° inclined, rotates 360°, 20/80 light splitting ratio |
| Interpupillary Adjustment | 50mm – 75mm | |
| Eyepiece | 10X wide-field eyepieces, 22mm field of view. Diopter adjustment on left viewing tube | |
| Nosepiece | Revolving, four position, reversed nosepiece with internal click stops | |
| Objectives | 4X, 10X, 40XS, 100XS infinity semi-plan DIN achromatic objectives are color-coded, parfocaled and parcentered | |
| Stage | 145mm X 140mm built-in double layer mechanical stage, smooth X/Y calibrated movement with cross travel range of 76mm X 52mm | |
| Condenser | Rack and pinion adjustable 1.25 N.A. Abbe condenser | |
| Diaphragm | Iris diaphragm with position guide markings that correspond to their respective objectives | |
| Focusing System |
Low position coaxial coarse and fine focusing knobs, coarse movement stroke of 26mm, fine focus graduation of 2µm | |
| Illumination | 3W LED illumination with light intensity control | |
| Power | 3-wire ground power cord | |
| Accessories | Vinyl dust cover and user manual | |
| Warranty | Limited 5 year | |
| Weight | N/A |
|---|---|
| Option | 1008, 1010 |
