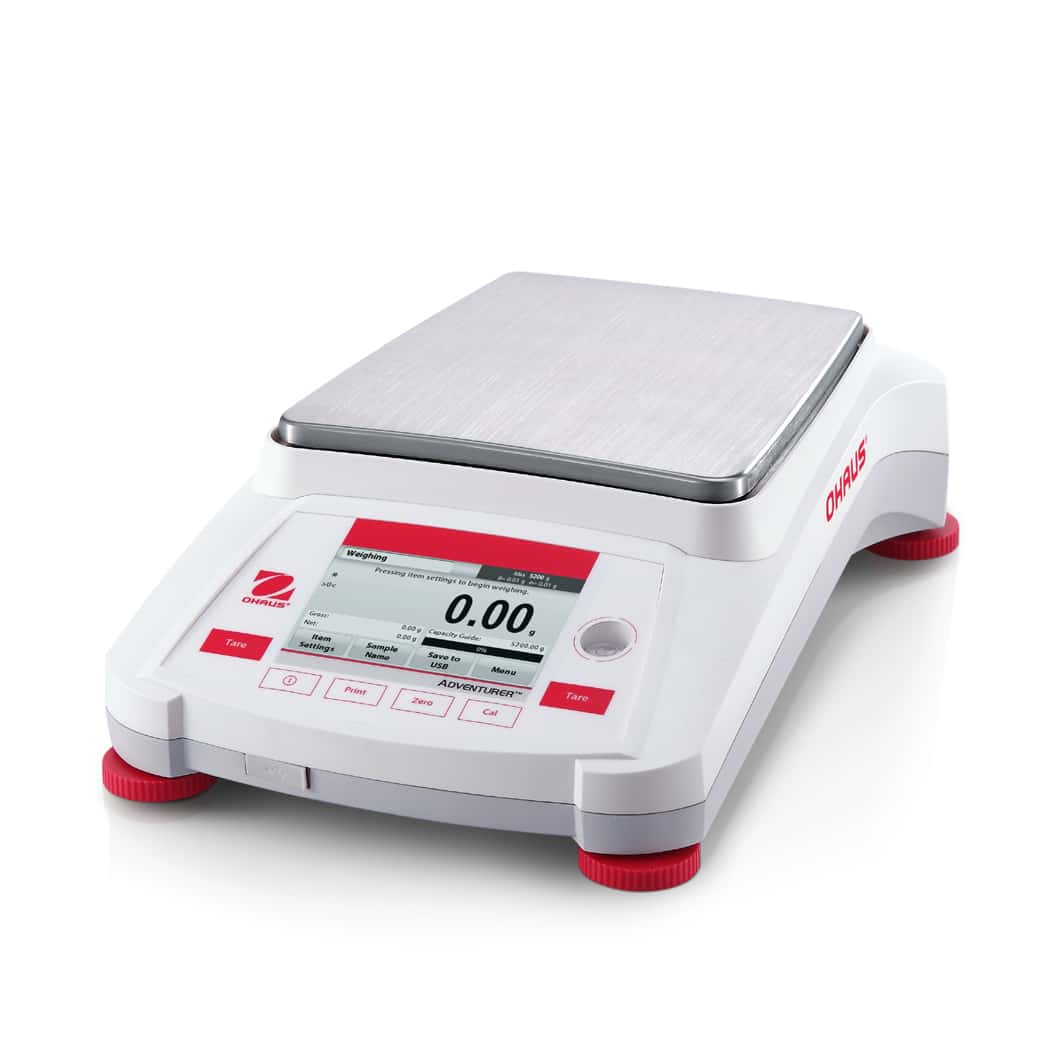

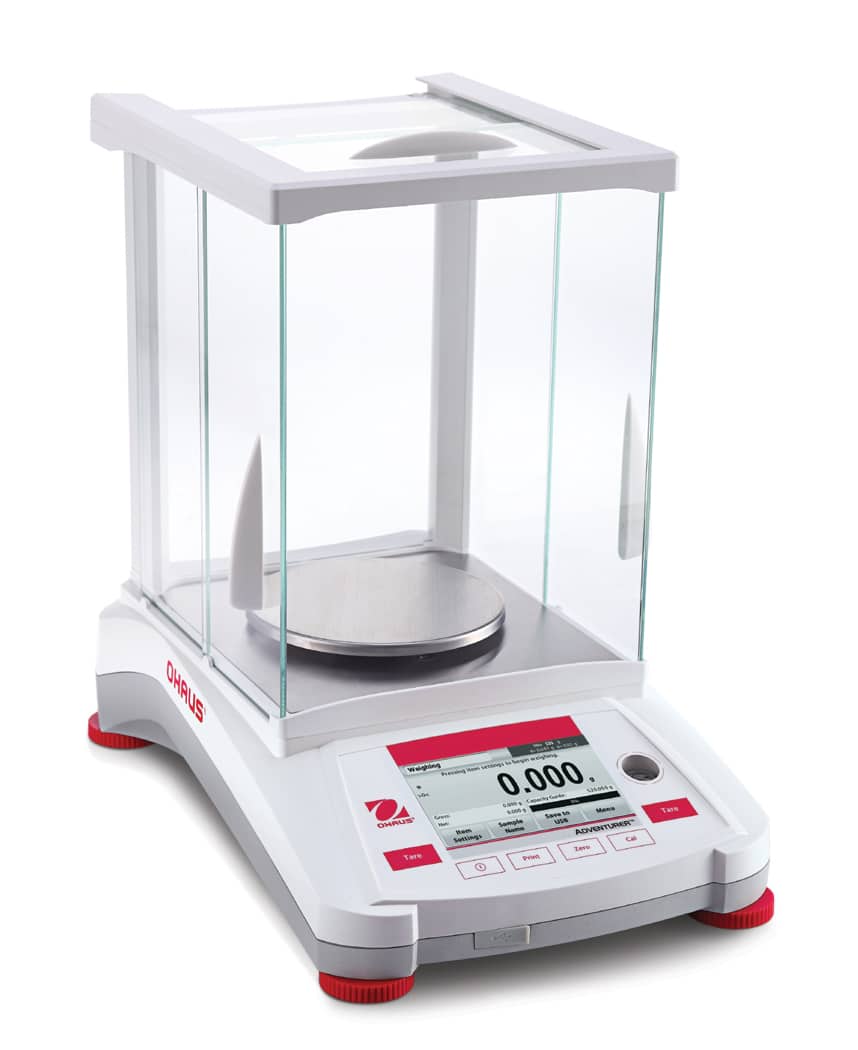

SKU Ohaus Adventurer Precision Balances
Price range: $1,971.00 through $4,958.50
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the Ohaus Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.
Application: Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Totalization/Statistics, Formulation, Density Determination, Display Hold
Display: 4.3″ (109mm) Full-color VGA graphic touchscreen with user-controlled brightness
Operation: AC Adapter (Included)
Communication: RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Construction: Metal base, ABS top housing, stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door (1mg models only), illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use cover
Design Features: Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages
| Internal Cal | AX223 | AX423 | AX523 | – | AX622 | – | AX1502 | AX2202 | AX4202 | AX5202 | – | AX4201 | AX8201 |
| External Cal |
AX223/E | AX423/E | AX523/E | AX422/E | – | AX822/E | AX1502/E | AX2202/E | AX4202/E | – | AX2201/E | AX4201/E | AX8201/E |
| Capacity | 220g | 420g | 520g | 420g | 620g | 820g | 1520g | 2200g | 4200g | 5200g | 2200g | 4200g | 8200g |
| Readability |
0.001g | 0.001g | 0.001g | 0.01g | 0.01g | 0.01g | 0.01g | 0.01g | 0.01g | 0.01g | 0.1g | 0.1g | 0.1g |
| Repeatability |
±0.001g | ±0.01g | ±0.1g | ||||||||||
| Linearity | ±0.002g | ±0.02g | ±0.2g | ||||||||||
| Weighing Units |
gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound (only for 0.1g and 0.01g models), Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1) | ||||||||||||
| Application Modes | Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold | ||||||||||||
| Stabilization Time | ≤2 sec | ≤1.5 sec | |||||||||||
| Sensitivity Temp. Drift |
3ppm / °C | 1.9ppm/°C | 9ppm / °C | ||||||||||
| Calibration | AutoCal™ internal calibration (except for AX…/E models), all models feature external calibration | ||||||||||||
| Tare Range | To capacity by subtraction | ||||||||||||
| Display |
4.3″ / 109mm (diagonal) Full-Color Touchscreen WQVGA Graphic LCD | ||||||||||||
| Interface | RS232, USB Device, USB Host | ||||||||||||
| Operating Conditions | 10°C – 30°C / 50°F – 86°F, 80% max up to 86°F / 30°C | ||||||||||||
| Pan Size |
Ø 5.1″ / 130mm | 6.9″ x 7.7″ / 175 x 195mm | |||||||||||
| Base Housing (WxHxD) | 13.93″ x 13.39″ x 9.05″ / 354 × 340 × 230mm |
13.93″ × 3.94″ × 9.05″ / 354 × 100 × 230mm | |||||||||||
| Power |
AC Adapter Input: 100-240 VAC, 0.A, 50-60 Hz; AC Adapter Output: 12 VDC 0.84A | ||||||||||||
| Net Weight | 12.8lb / 5.8kg | 10.2lb / 4.6kg | 8.4lb/3.8kg | ||||||||||
| Weight | N/A |
|---|---|
| Option | AX223, AX223/E, AX423, AX423/E, AX523, AX523/E, AX622, AX422/E, AX822/E, AX1502, AX1502/E, AX2202, AX2202/E, AX4202, AX4202/E, AX5202, AX2201/E, AX4201, AX4201/E, AX8201, AX8201/E |
